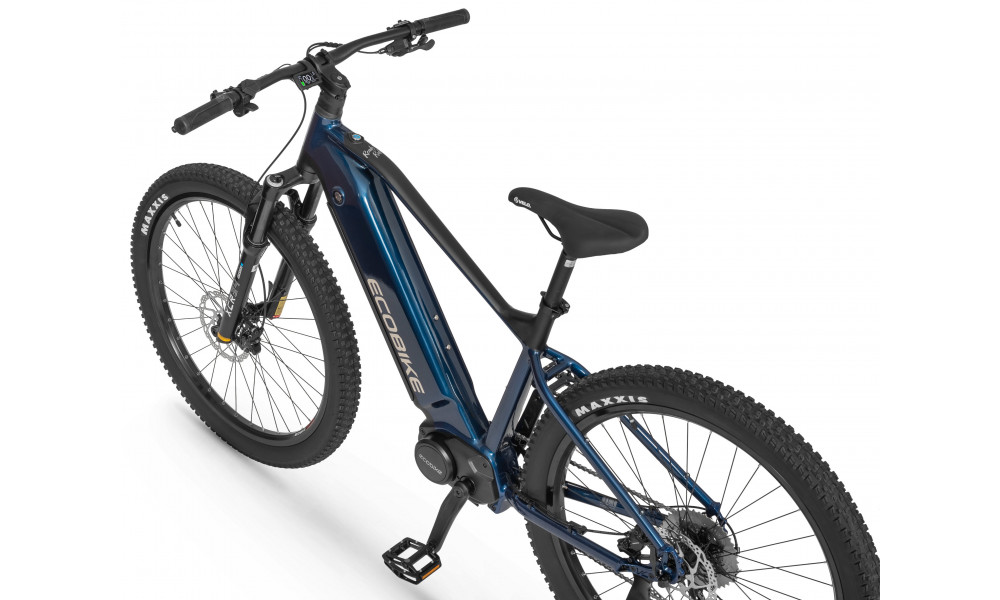

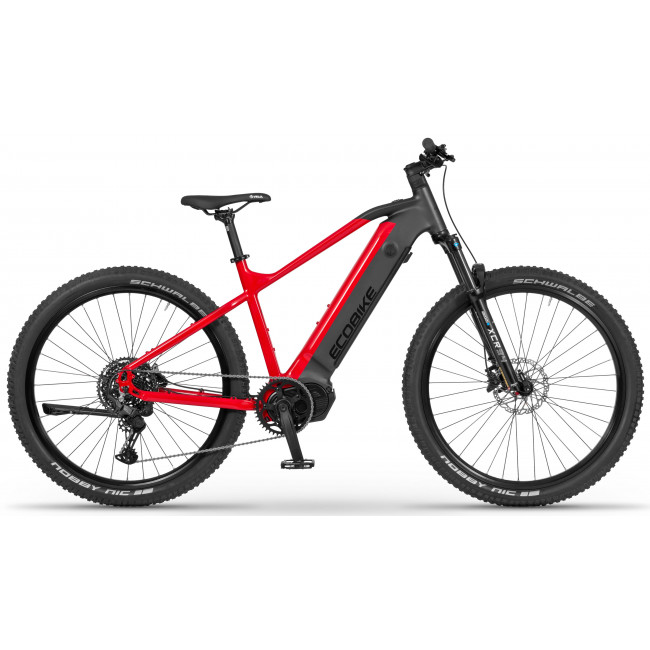

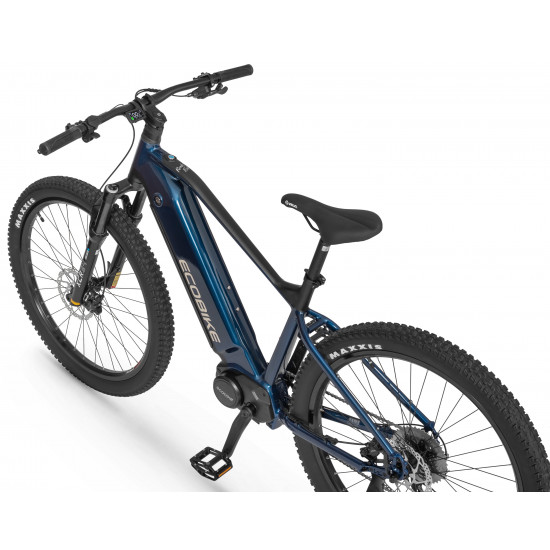

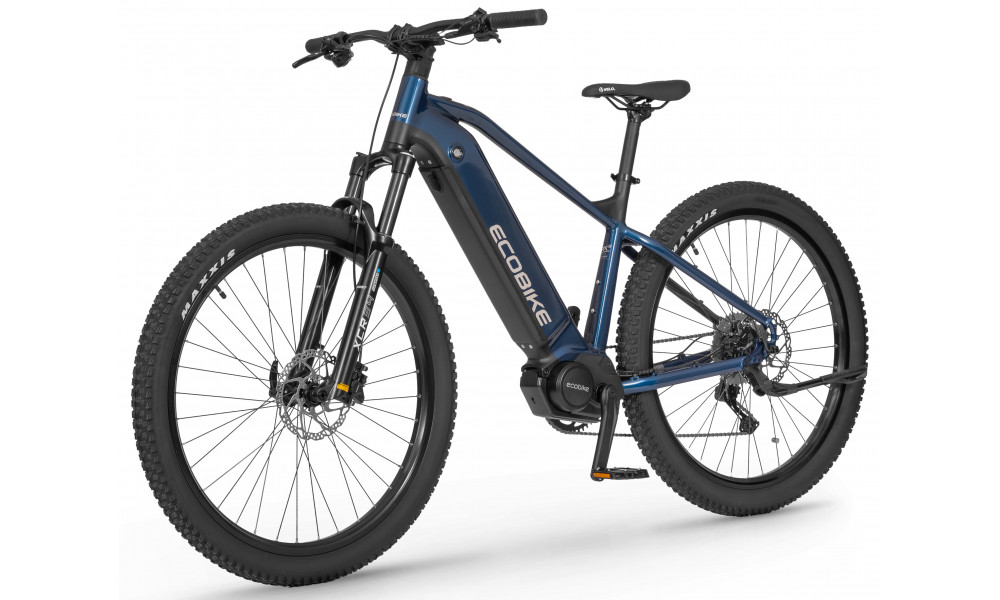

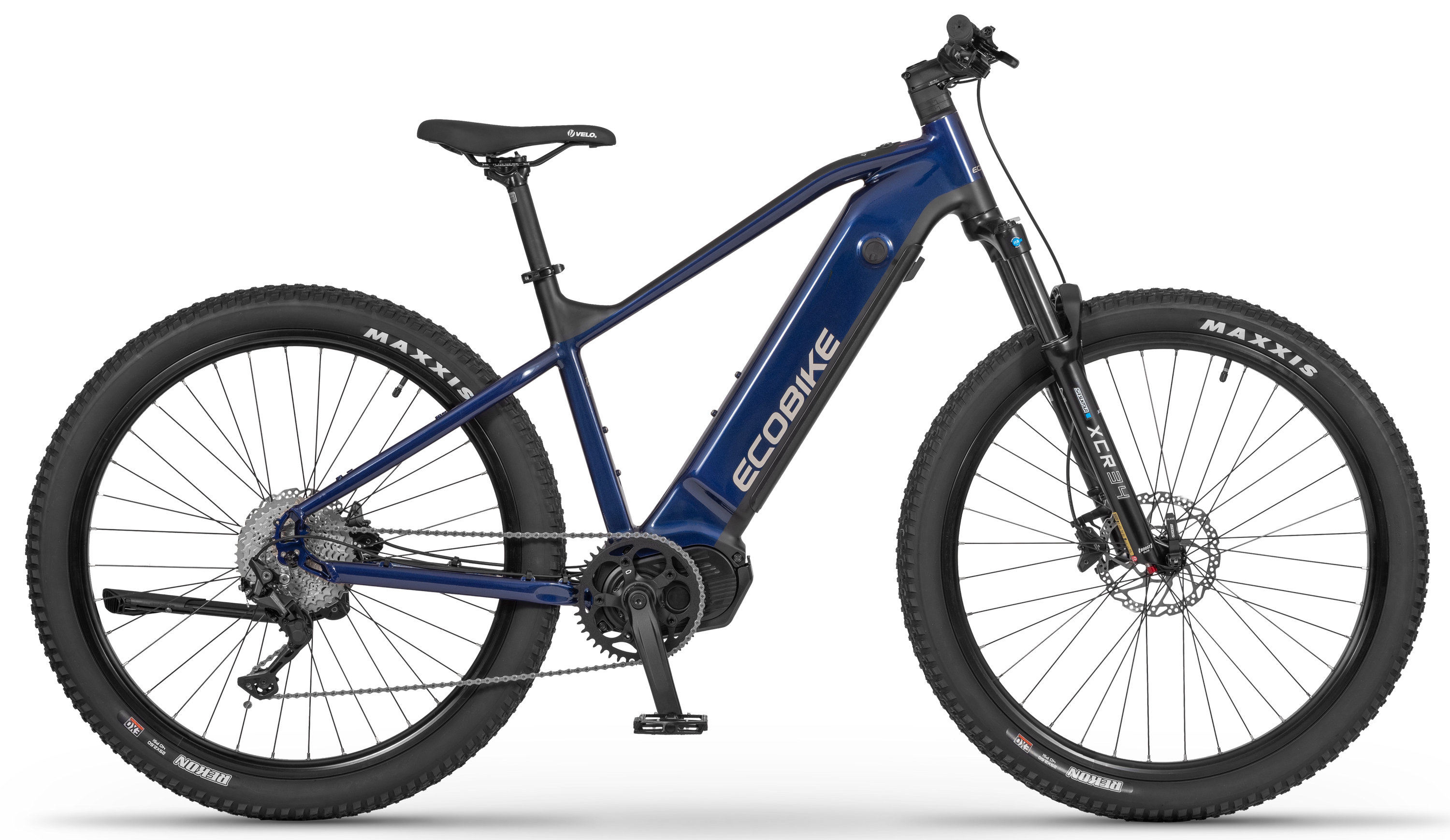

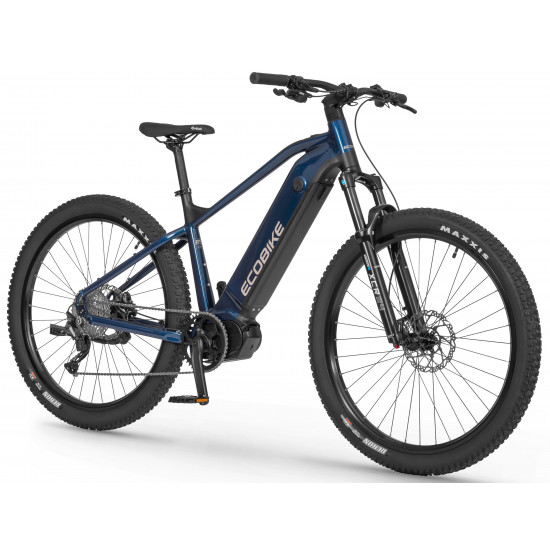

Forget everything you have not been able to achieve before. Choose your destination and the technology will take care of getting you exactly where you want to be. Meet the RX 500 and see how easy it is today to do what yesterday seemed impossible.
Forget everything you have not been able to achieve before. Choose your destination and the technology will take care of getting you exactly where you want to be. Meet the new RX 500 and see how easy it is today to do what yesterday seemed impossible.
The energy used by the electric assistance system is drawn from the LG battery with a voltage of 48V. Intelligent engine and battery systems connected together will ensure that you can enjoy the ride as long as possible. The battery has a SMART BMS system that constantly monitors its operation and records charging cycles.

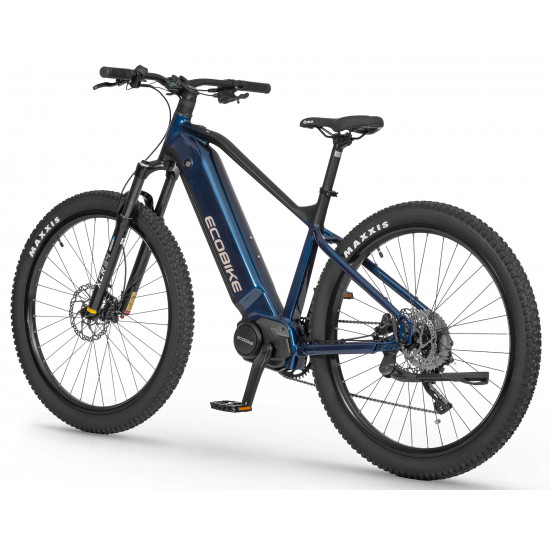

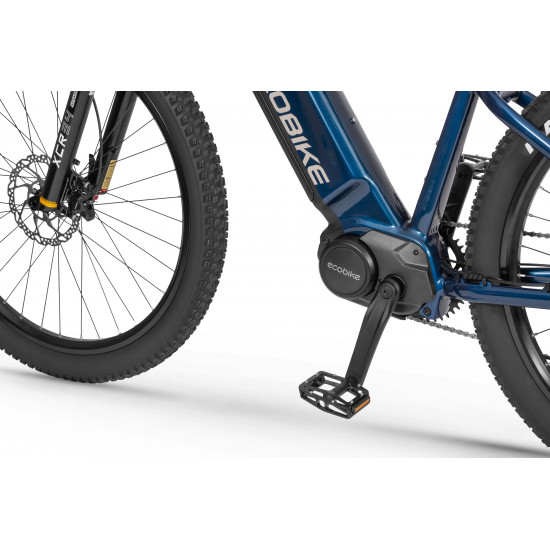

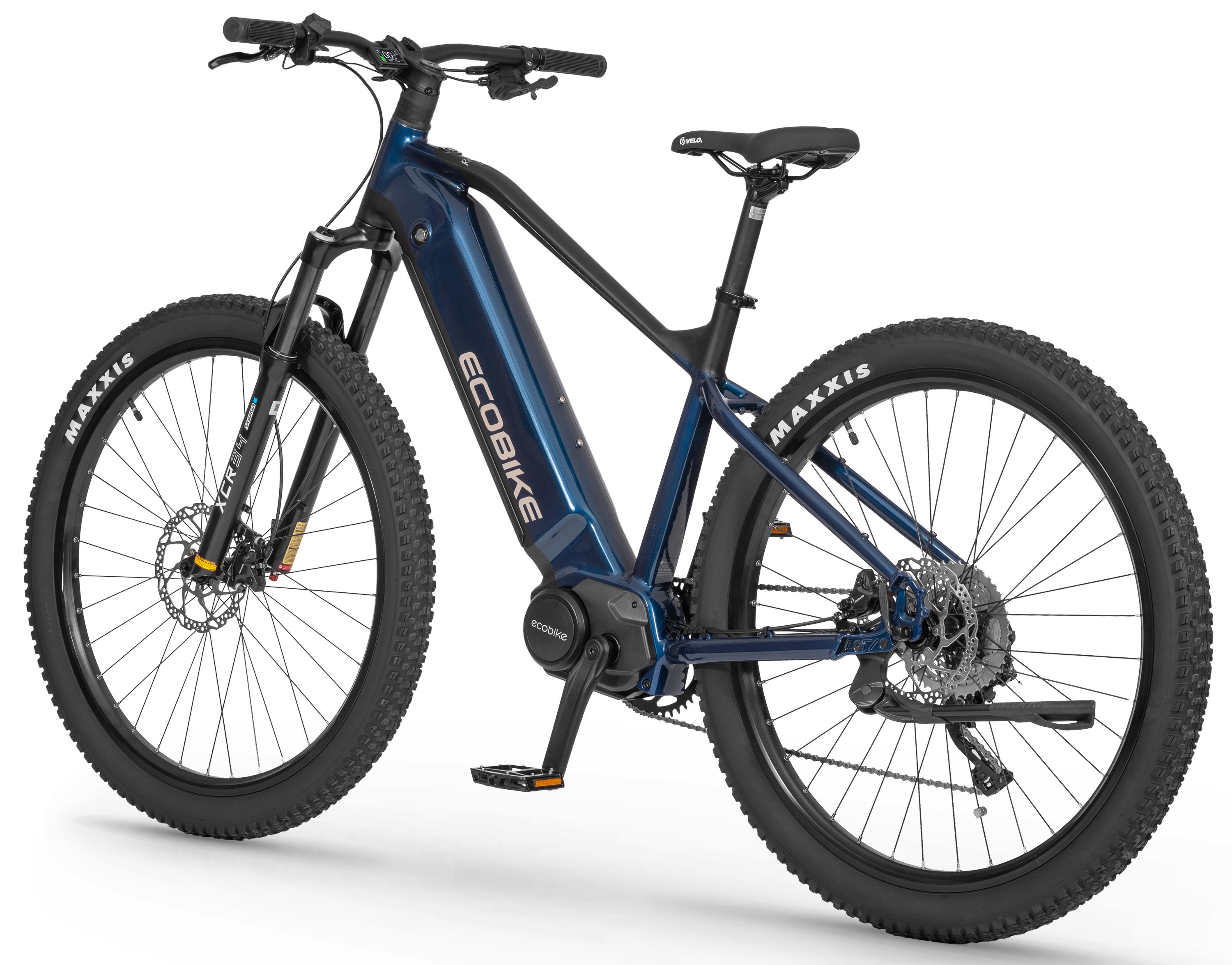

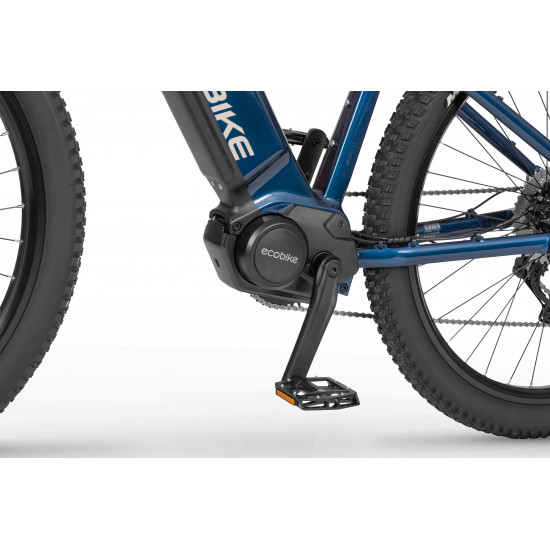

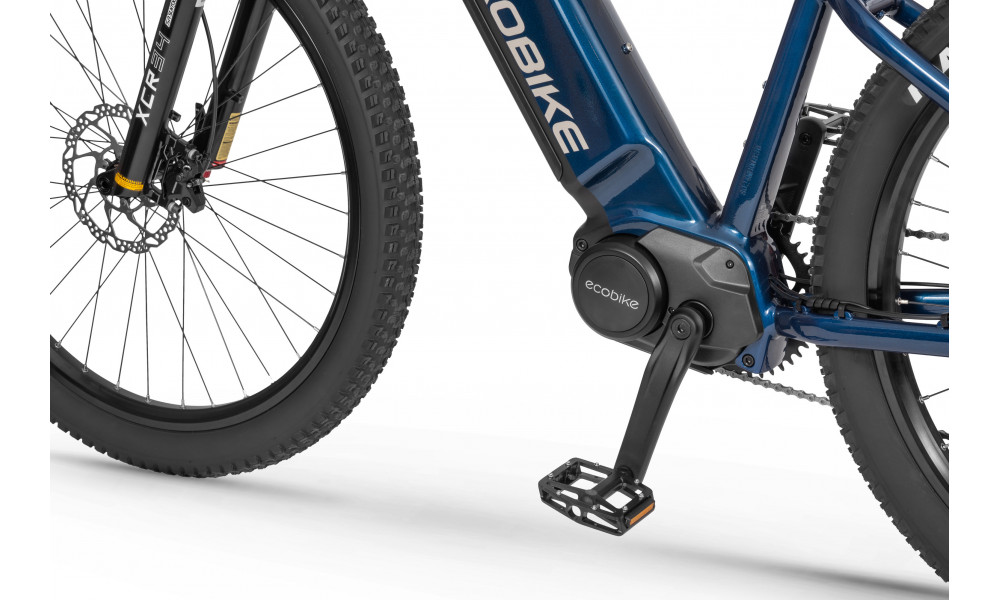

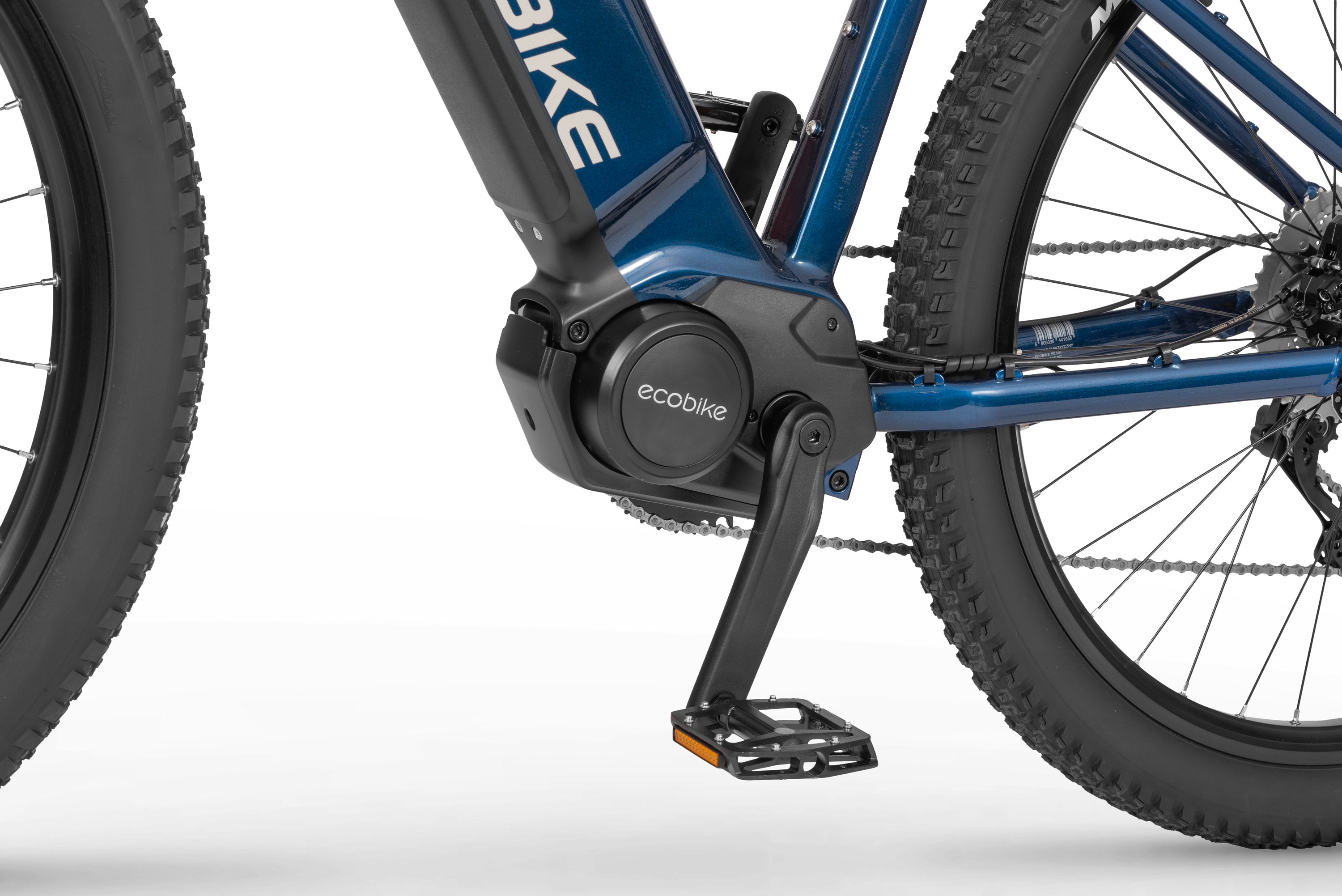

Advanced technology requires an appropriate setting, but ergonomics and safety are key. The new frame concept makes the bike look great - the integrated battery is almost invisible, and the motor discreetly reveals its hidden potential. So that the good impression is not spoiled by the feeling of driving, we paid a lot of attention to the geometry. Optimal weight distribution was achieved by placing the motor at the right angle and placing the battery at the bottom of the structure.
Product technical specifications

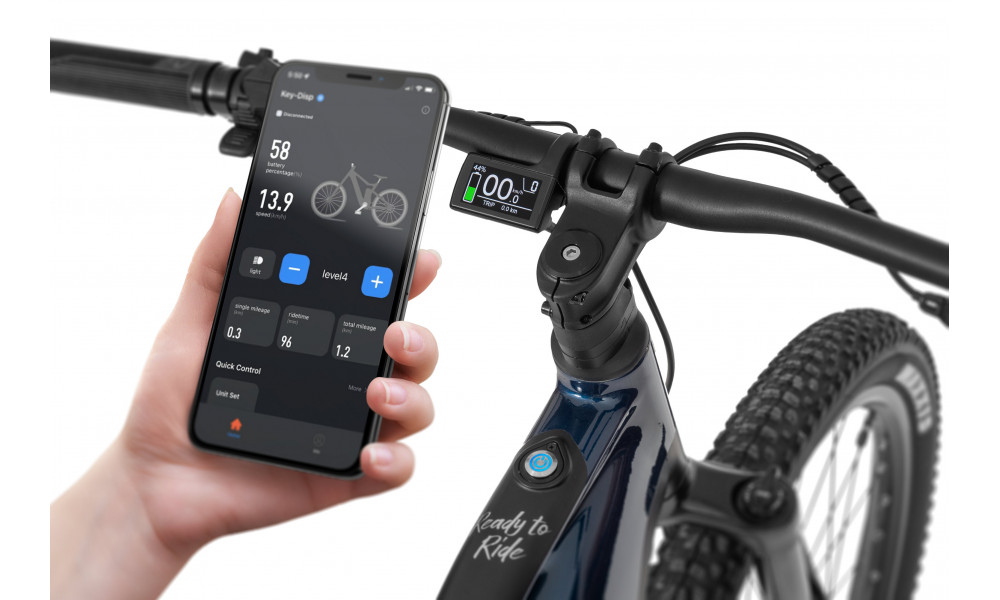

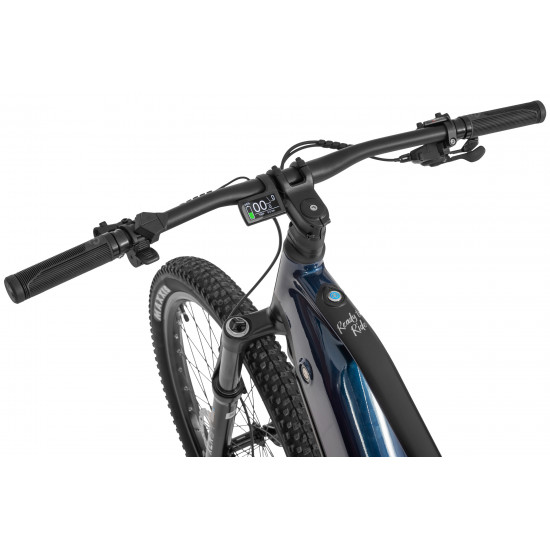

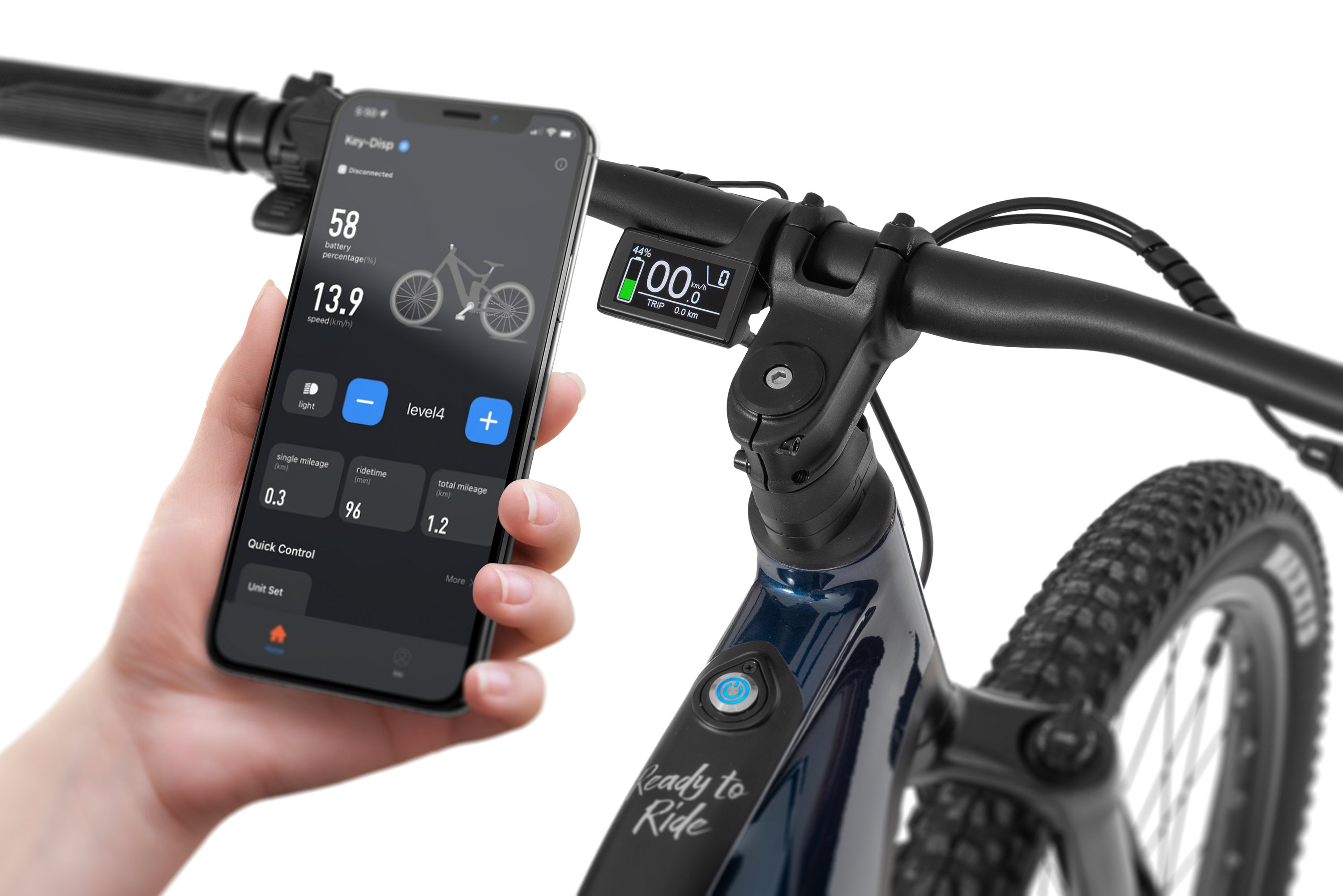

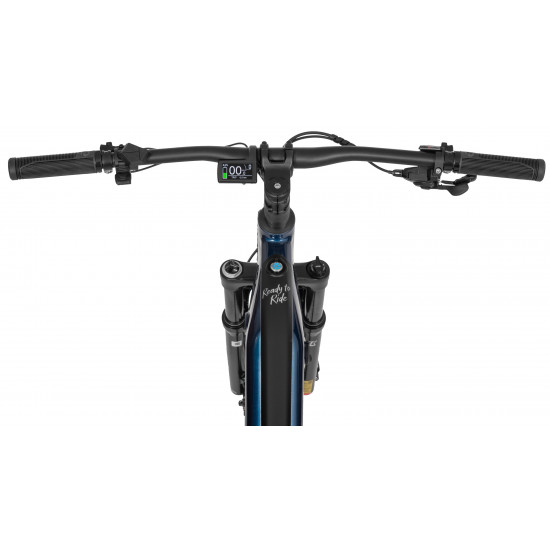

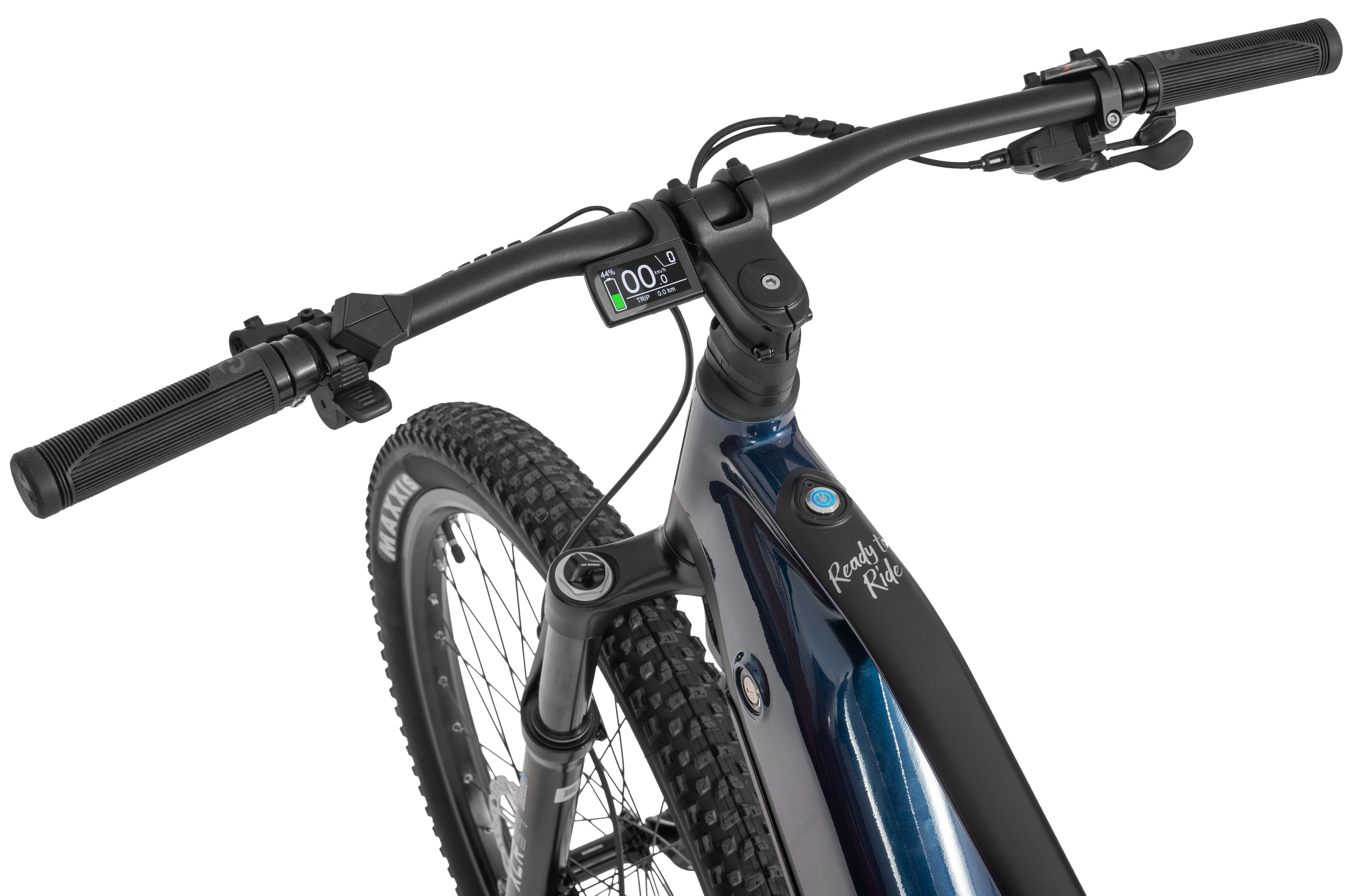

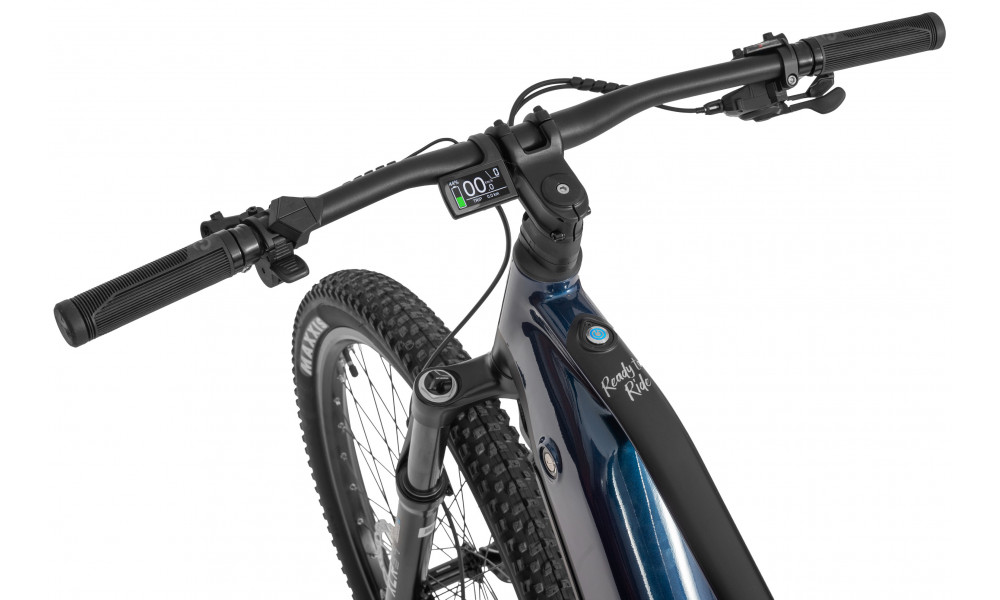

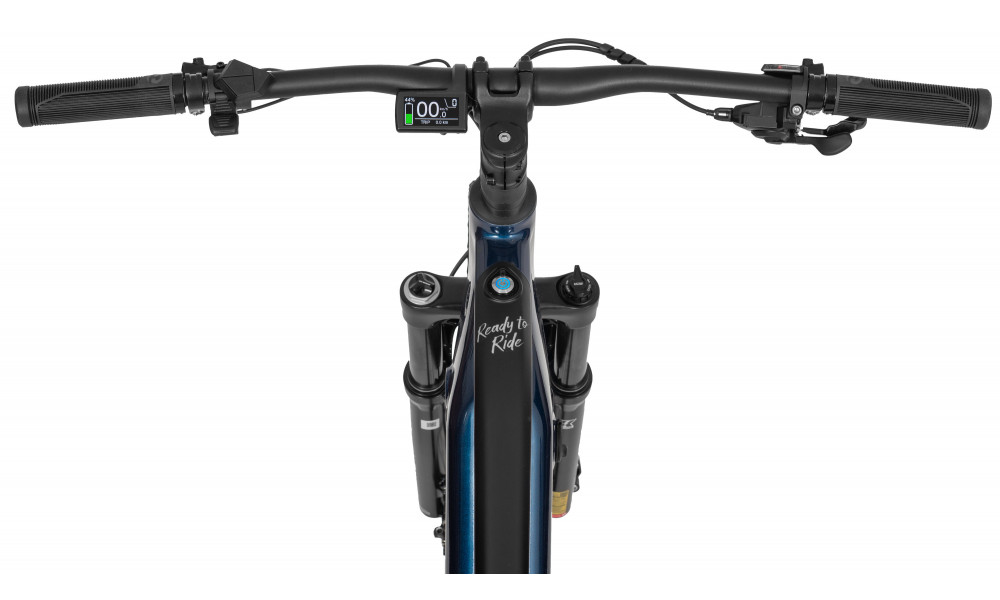

- Display model: KD-586
- Display type: Color LCD

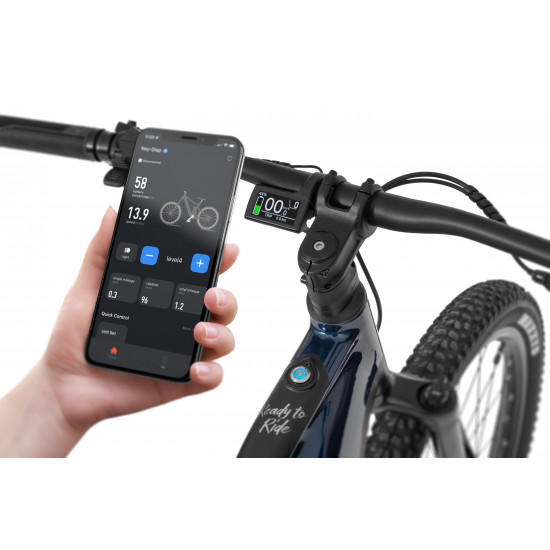

- Compatible application: Ananda Ride
DISPLAY:
- Capacity and range:
- 960 Wh: MAX 175 km
- Voltage: 48 V

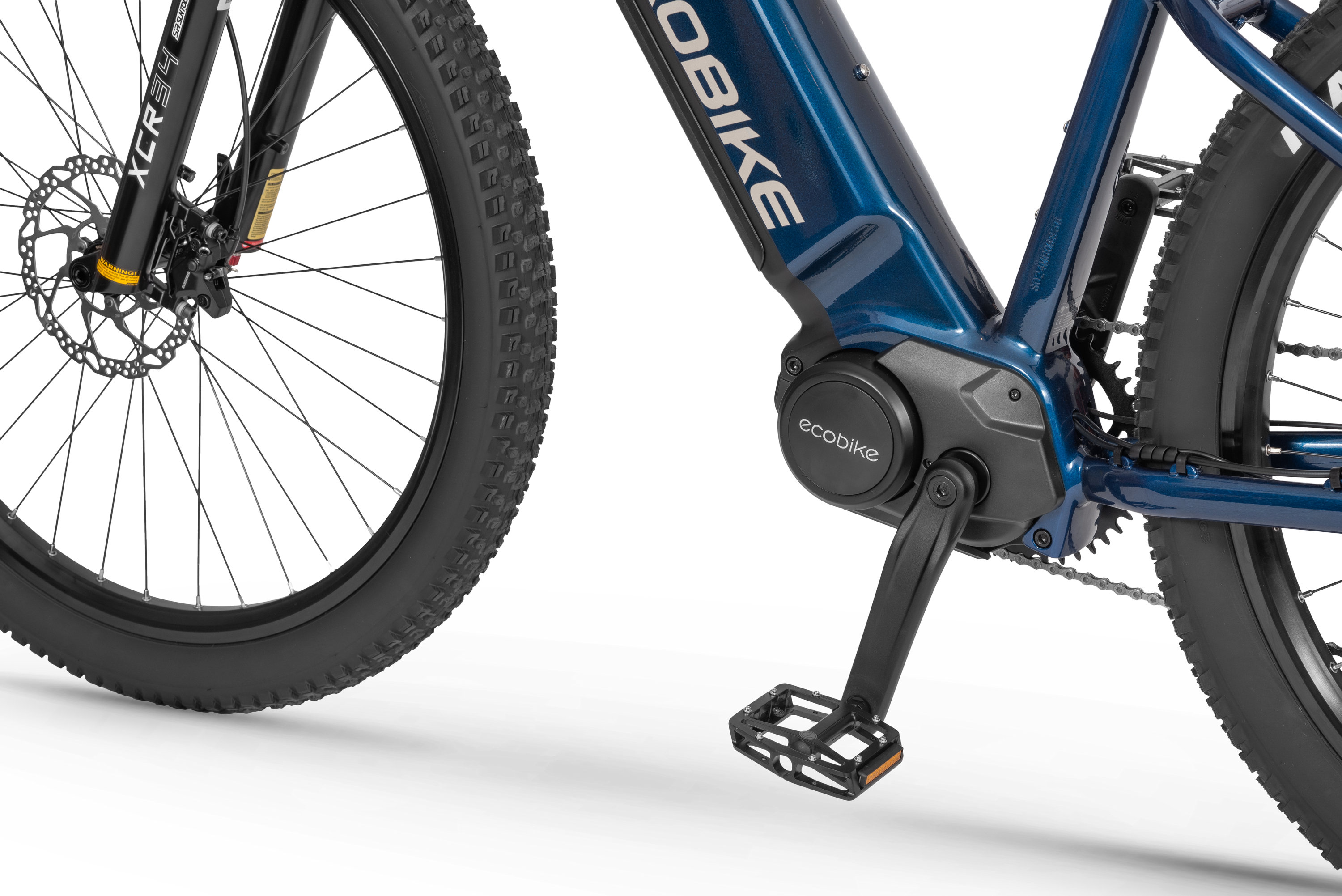

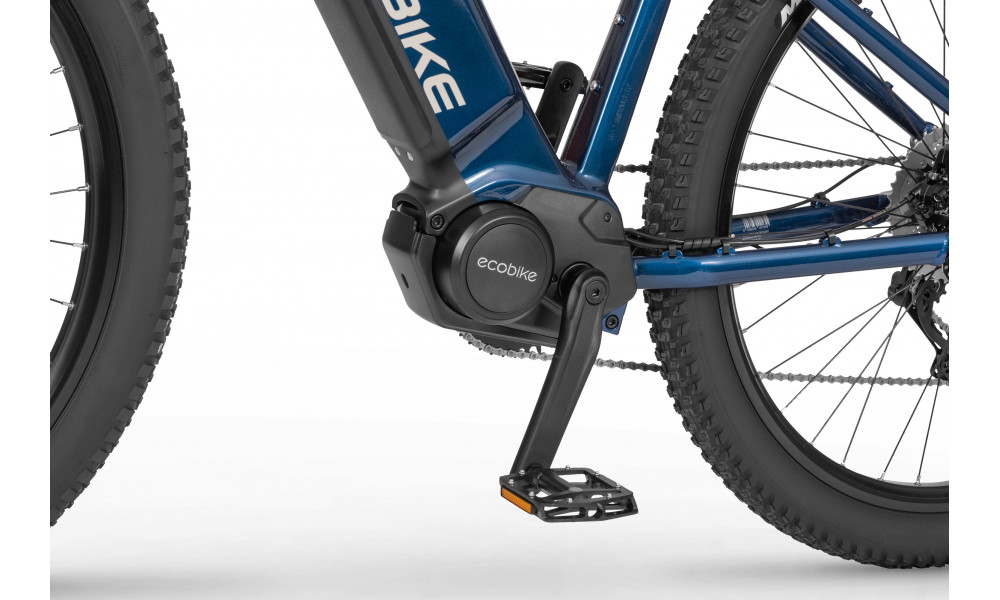

- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 130 Nm
- Motor's brand: ANANDA
- Power: 250 W
DISTANCE:
ENGINE:
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 48 V
- Charger: 100-240V/54.6V 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 17"

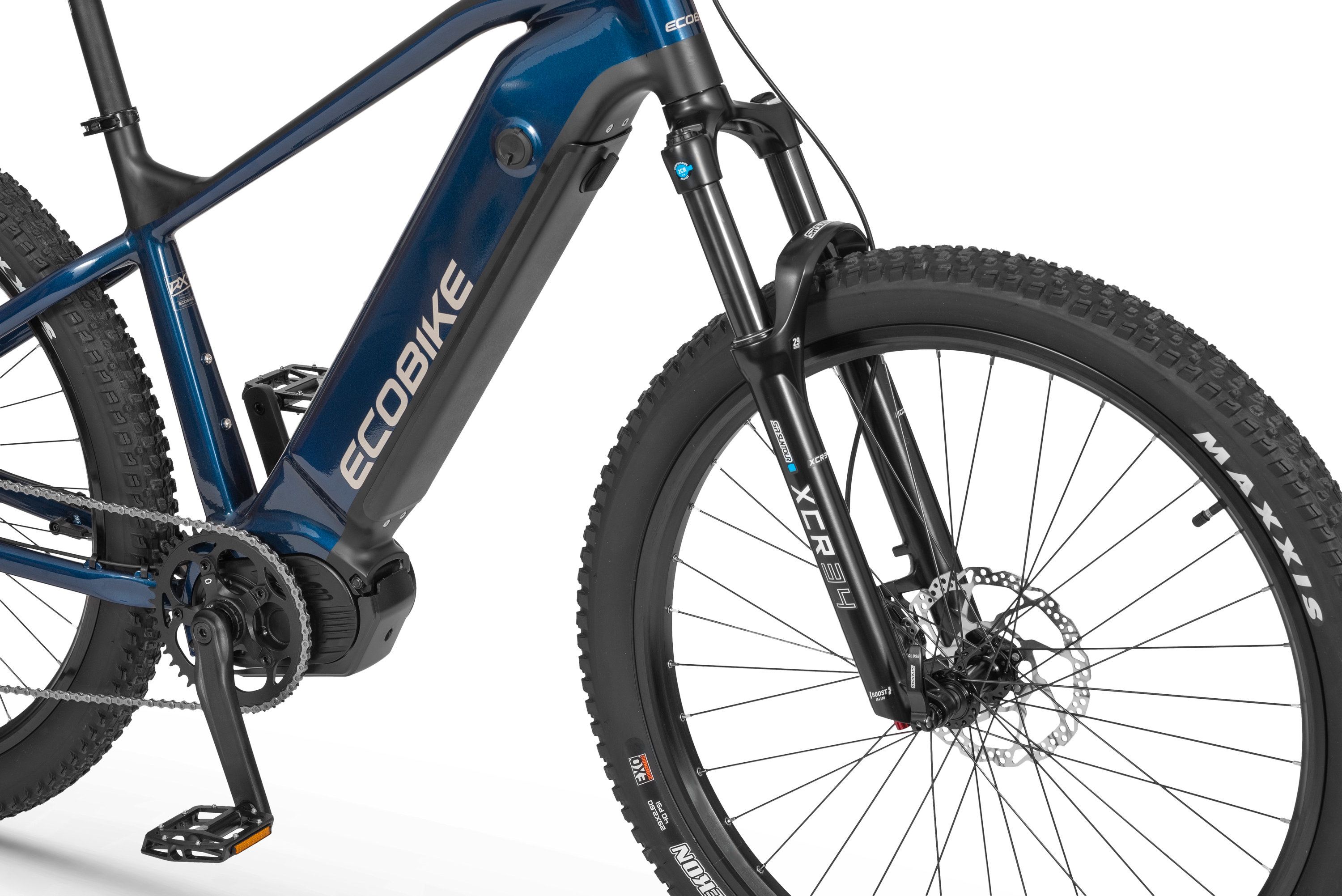

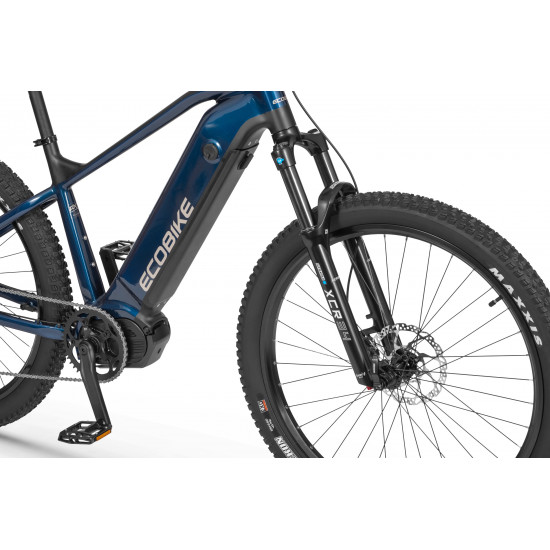

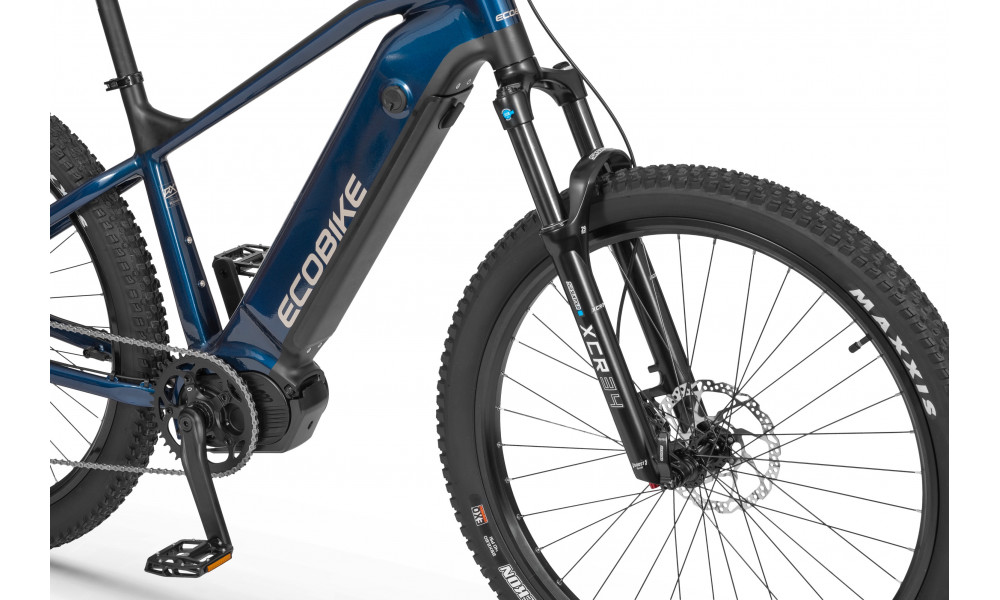

- FORK: SunTour XCR34 AIR BOOST, 120 mm travel
- BRAKES: Shimano MT401 hydraulic disc
- CHAIN: KMC eGlide Silver, 128L
- CHAINWHEEL: Ananda 1-speed, 44T

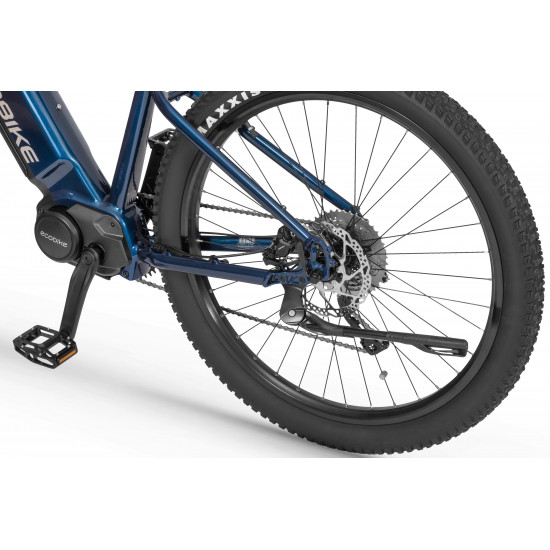

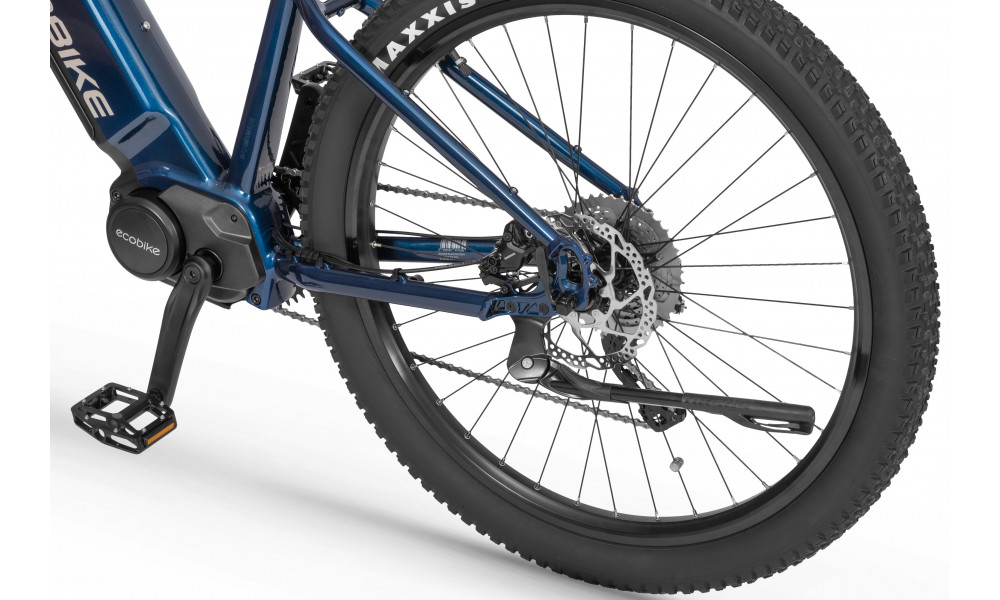

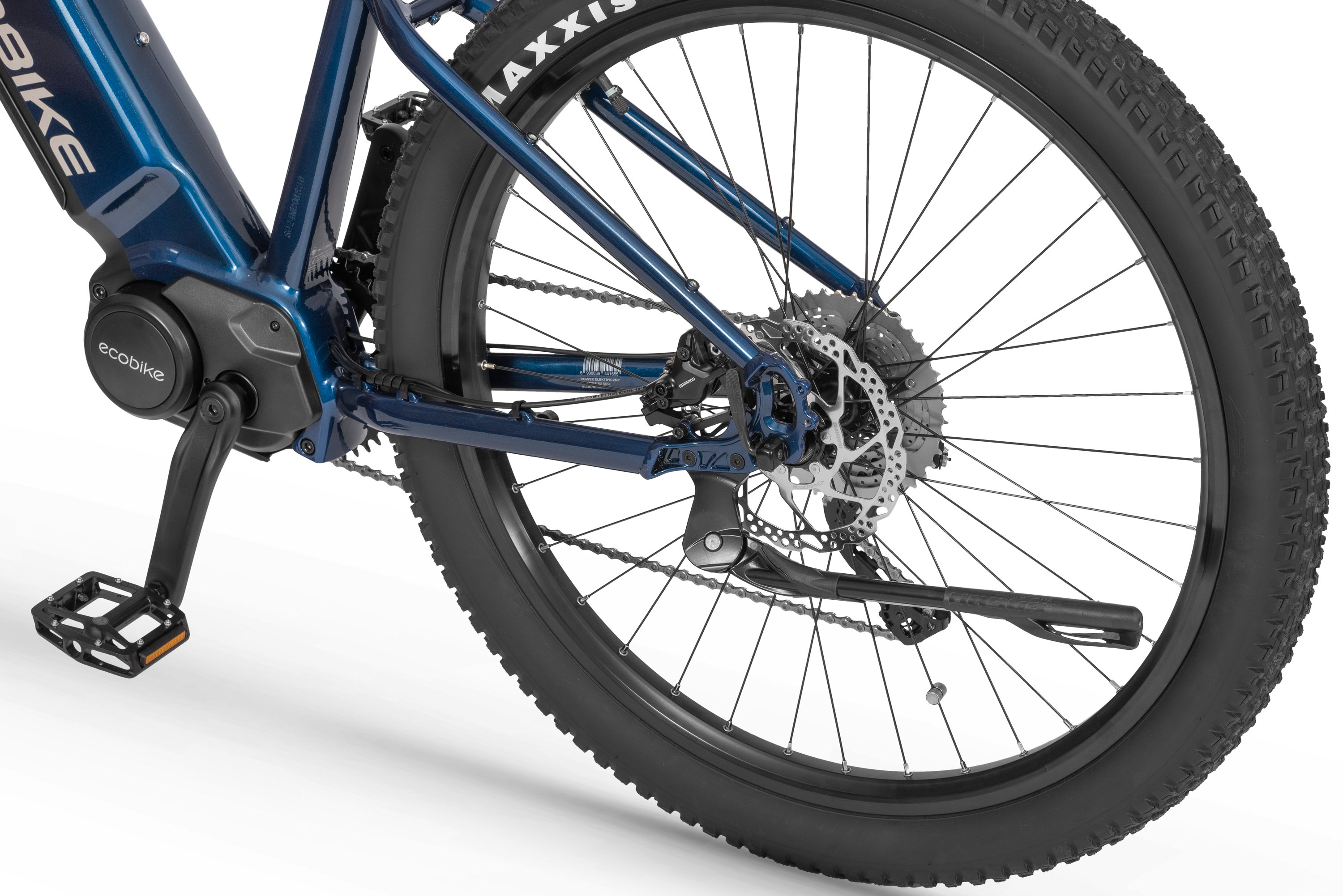

- REAR DERAILLEUR: Shimano Cues, 10 speed
- FREEWHEEL: Shimano Cues, 11-48T, 10-speed

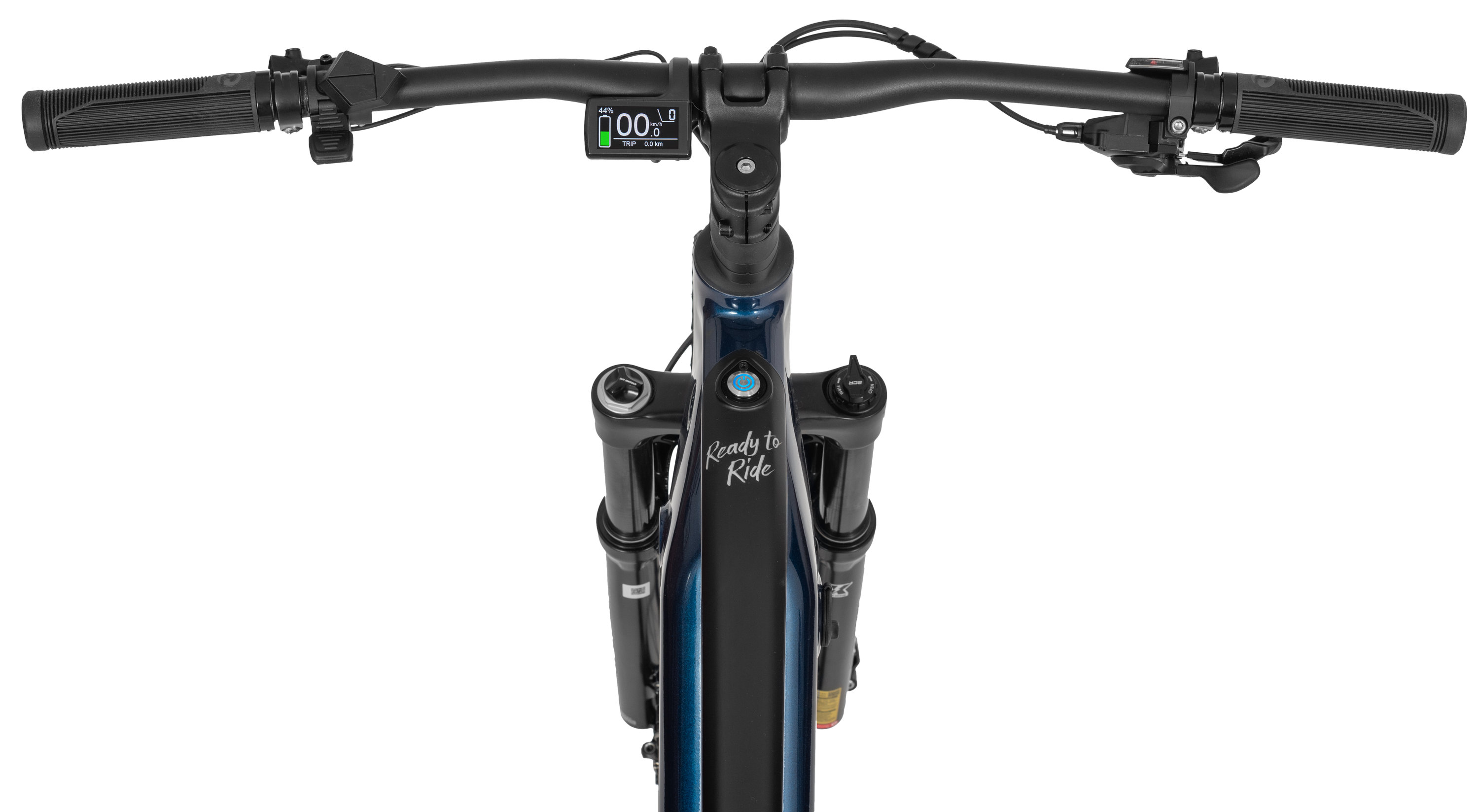

- HANDLEBAR: Zoom MTB-AL-320BT, 760 mm x 31.8 mm, rise 20 mm
- STEM: Promax TDS-D631-8, 31.8 mm / 60 mm
- HUBS: Front hub: Shimano HB-TC500-15-B, 36H, 110 mm, centerlock / Rear Hub: Shimano FH-TX505-8 / FH-QC300-HM, 135 mm, 36H, Center lock
- PEDALS: FP-203ZP
- RIMS: 29" reinforced three-chambered rims, Sapim spokes
- SADDLE: VELO VL-3363
- SEAT POST: ZOOM SP-C255, diameter: 30.9 mm, length: 350 mm
- SHIFTERS: Shimano Cues 10-speed
- TYRES: 29" x 2.6" Schwalbe Nobby Nic or Maxxis Rekon
- WEIGHT: 26.1 kg
- SPEEDS: 10
- GRIPS: Herrmans RIB single lock
- Effective top tube length: 600 mm
- Head tube lenght: 145 mm
- Frame size: 432 mm
- Wheel base: 1192.7 mm
- Seat tube angle: 73
- Headset angle: 67
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
