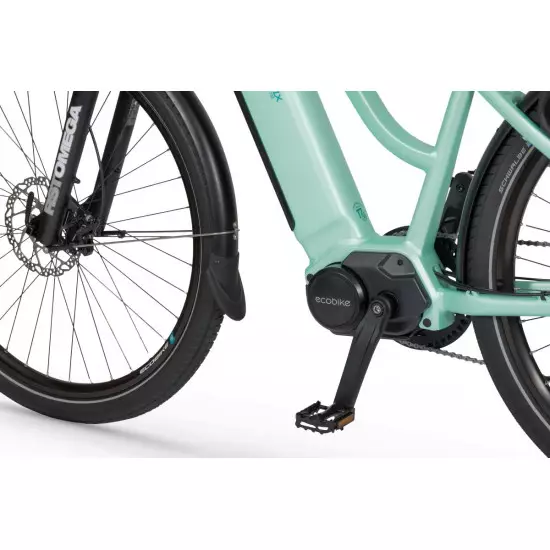

Elektro velosipēds Ecobike LX 500 28" 48V 2023 mint

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Progress is our path. Now you choose your own and follow it with the support of the best technology. Discover new possibilities with the Ecobike LX500 and enjoy the ride with no limits! The unique design of the LX500 brings together the three most important factors for us: comfort, durability and ergonomics. The geometry of the frame allows you to maintain the optimal position for both short trips and longer trips. The reinforced structure ensures safety, and all vibrations and shocks are distributed in such a way that the ride gives as much pleasure as possible. We managed to achieve great balance by placing the motor at the right angle and the battery at the bottom of the frame. Be sure that the LX500 will drive safely and confidently, and thanks to the fully integrated battery into the frame it will amaze and surprise everyone. The electric system hidden in the Ecobike LX500 is an intelligent organism. The Ananda middrive generates a whopping 130 Nm of torque, which allows this machine to climb even the steepest climb. Although the potential is very large, the users decides how they wants to ride, and the intelligent monitoring system of the way of movement will adjust the work of the bike in such a way that it is smooth, lasts as long as possible, and at the same time it is as close to natural riding as possible by bicycle. The unique possibilities could not be achieved without advanced power supply. Ecobike LX500 is supported by 48V batteries equipped with the Smart BMS system, which intelligently manages the battery operation, allowing it to keep it in good condition for years. There are two powerful variants to choose from: 14 Ah with 696 Wh and 17.5 Ah with 840 Wh. We have made sure that there was enough energy. You will surely like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle's lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions and configuration options for electric drive system. At Ecobike, technological progress meets passion for bicycles. The LX500 is a proud example of this - in addition to proven technology, it could not lack reliable components. Bike traction like this one is essential. We have taken care of it using an RST OMEGA TNL suspension fork and Schwalbe Big Ben Plus 28x2.15 tires. The highest level of safety is provided by SRAM Level hydraulic disc brakes. The derailleur in an electric bike with a middrive must be very durable. We used the SRAM GX model in the LX500. So that the LX500 is ready for anything out of the box, we've equipped it with complete lighting, fenders, a rack and the comfortable Selle Royal saddle. The Ecobike LX500 has been created in order to allow others to choose their own path. Open up to new possibilities that its phenomenal technology will make available to you!

DISTANCE:

Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.

48V/14AH(LG): 60-135 km (MAX POWER - MAX ECO)

48V/17.5AH(LG): 90-150 km (MAX POWER - MAX ECO)

ENGINE:

Voltage: 48 V

Mount: Central (mid-drive)

Motor assisted speed: 45 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)

Torque: 130 Nm

Motor's brand: ANANDA

Power: 250 W

Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 780 W

BATTERY:

Lifespan: 700 charges

Type: Li-ion

Voltage: 48 V

Charger: 100-240V/54.6V 3A D type

Cells brand: LG

Smart BMS (Battery Managment System)

Battery can be removed for charging

CHARGING TIME: 7-8 hours

FRAME: Hydroformed aluminium

FRAME SIZE: 17"

FORK: RST OMEGA TNL Tapered, suspension

BRAKES: Shimano MT400 hydraulic disc

CHAIN: KMC e10

CHAINWHEEL: 1-speed, 46T

REAR DERAILLEUR: Shimano DEORE 10-speed

FREEWHEEL: Shimano DEORE CS-M4100-10 10-speed 11-42T

HANDLEBAR: Promax HB-3188, aluminium, diameter in stem fixing spot (center): 31.8mm, length: 700mm

STEM: Promax MA-595, fork steerer: 28,6mm, handlebar diameter: 31,8mm, length: 90mm)

HUBS: Front hub: Shimano HB-TX505,36H CENTER LOCK / Rear Hub: Shimano FH-TX505-8 CENTER LOCK

PEDALS: Aluminium

RIMS: 28", reinforced

SADDLE: Selle Royal ARIEL

SEAT POST: Promax, diameter: 27.2mm, length: 350mm

SHIFTERS: Shimano DEORE 10-speed

SPOKES: stainless steel

TYRES: 28 x 2.15 (55-622)

WEIGHT: 29 kg

SPEEDS: 10

MUDGUARDS: For front and rear wheel, with u-stays

GRIPS: VELO VLG-1189D3

KICKSTAND: Rear, adjustable length, aluminium

CARRIER: Aluminium, max.: 25kg, with carrier straps

LIGHTS: Front and rear, LED

Maximum load: 125 kg

Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.

Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.

Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.

Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.

Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.

Lifespan - stated number can be lower if stored and used improperly

Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.

Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.

IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
