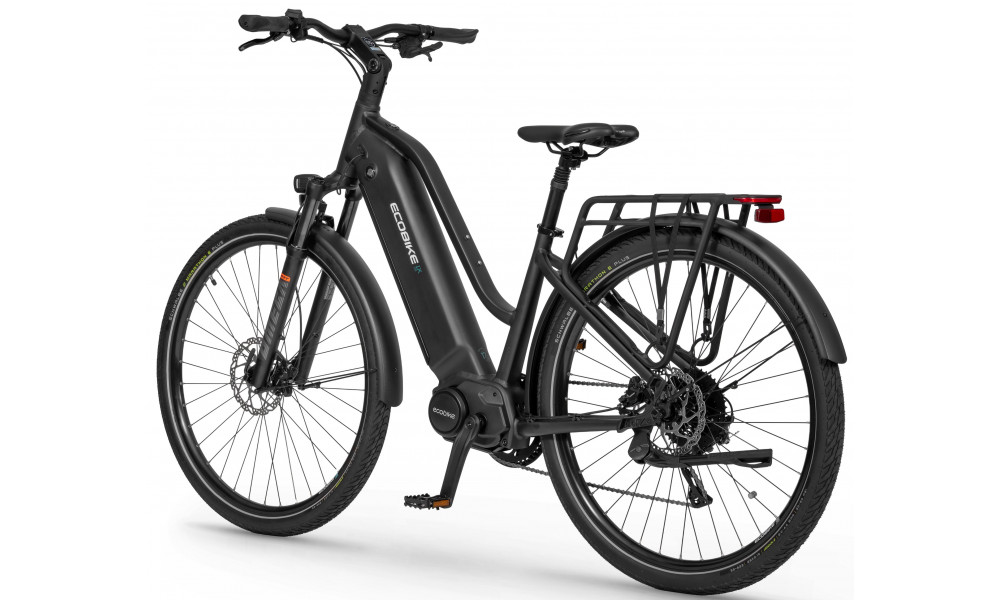

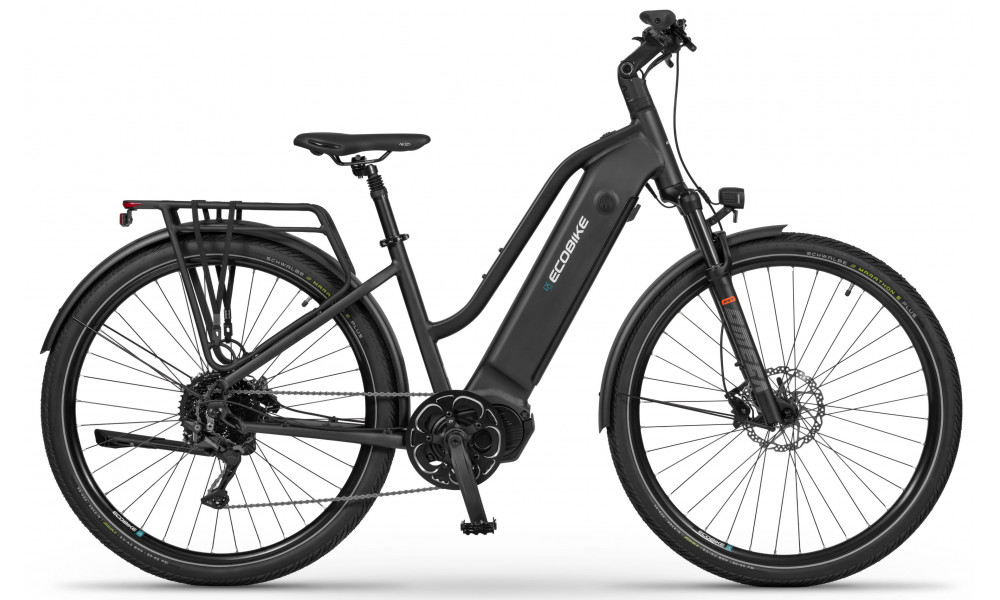

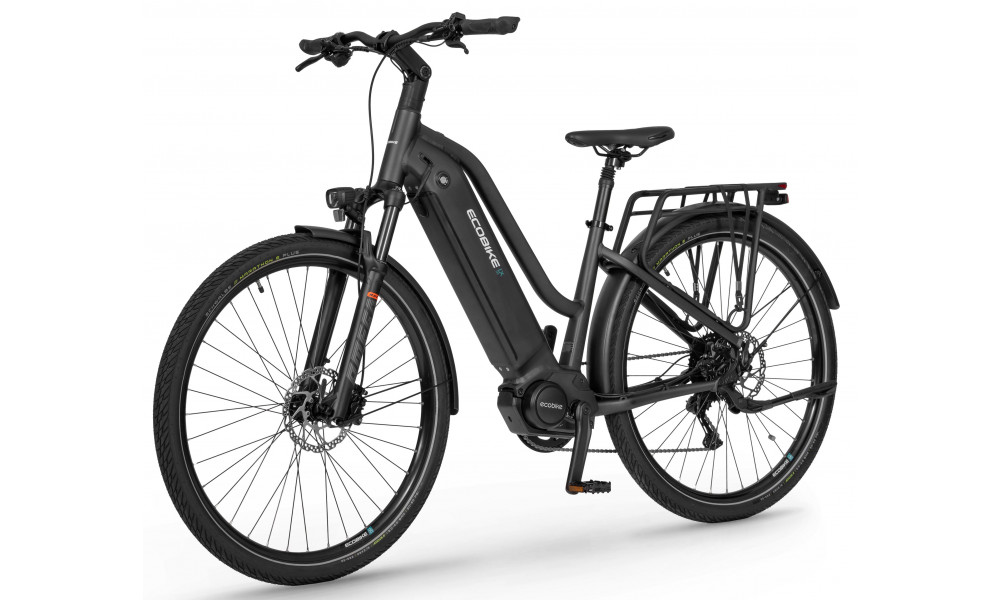

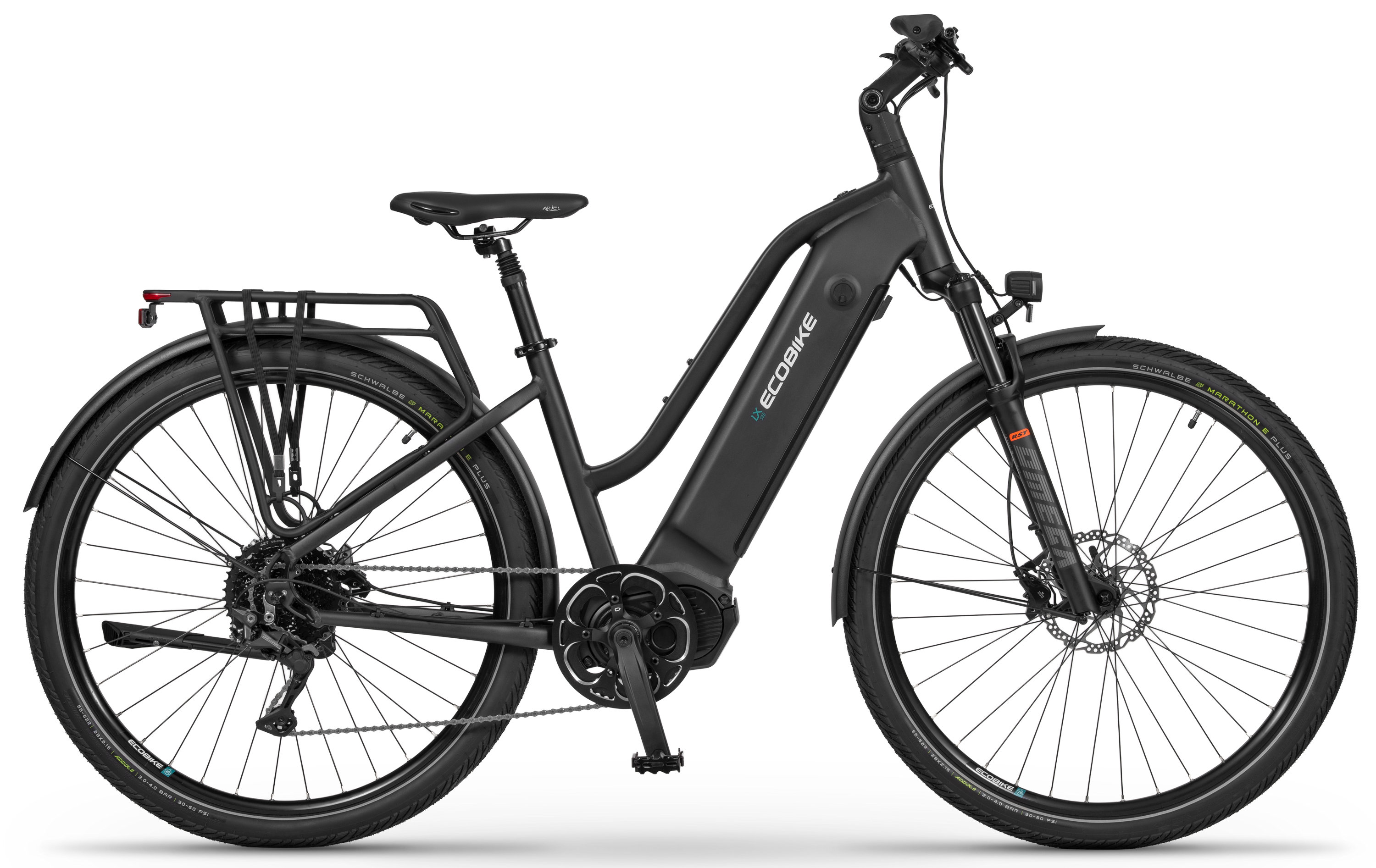

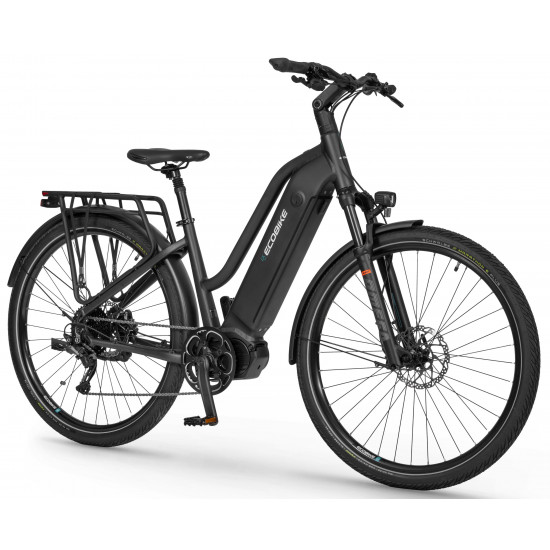

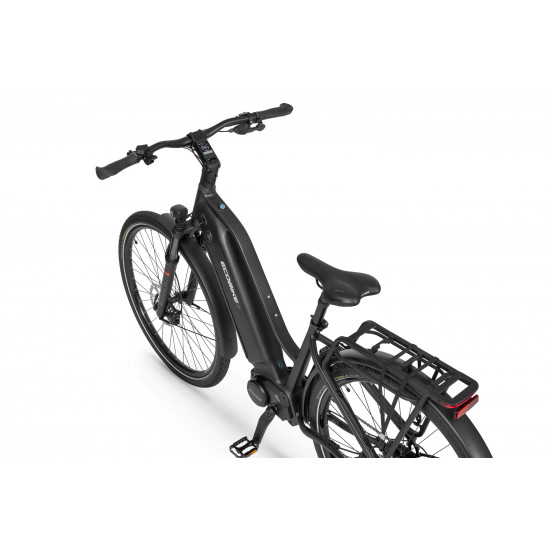

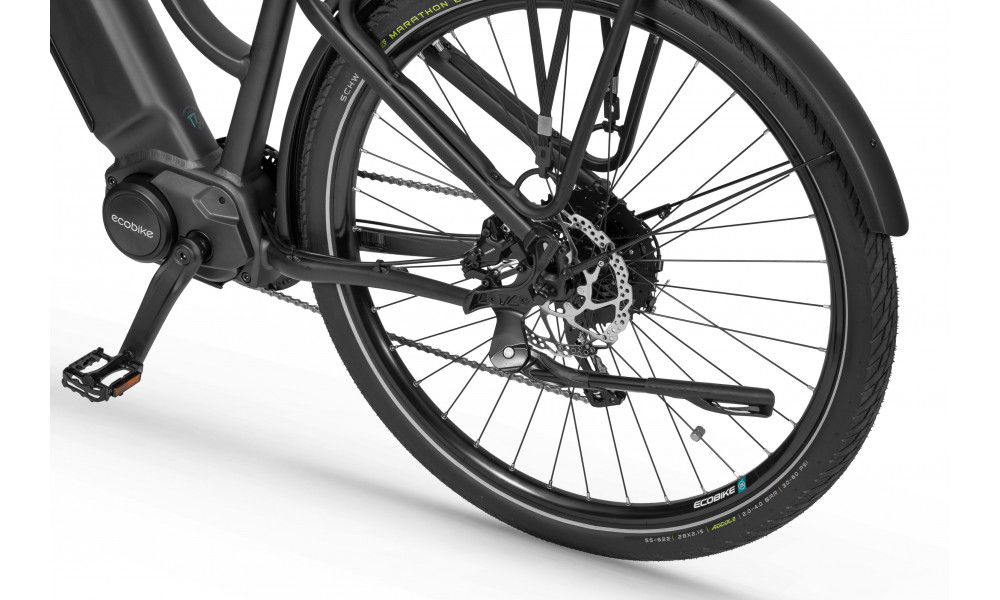

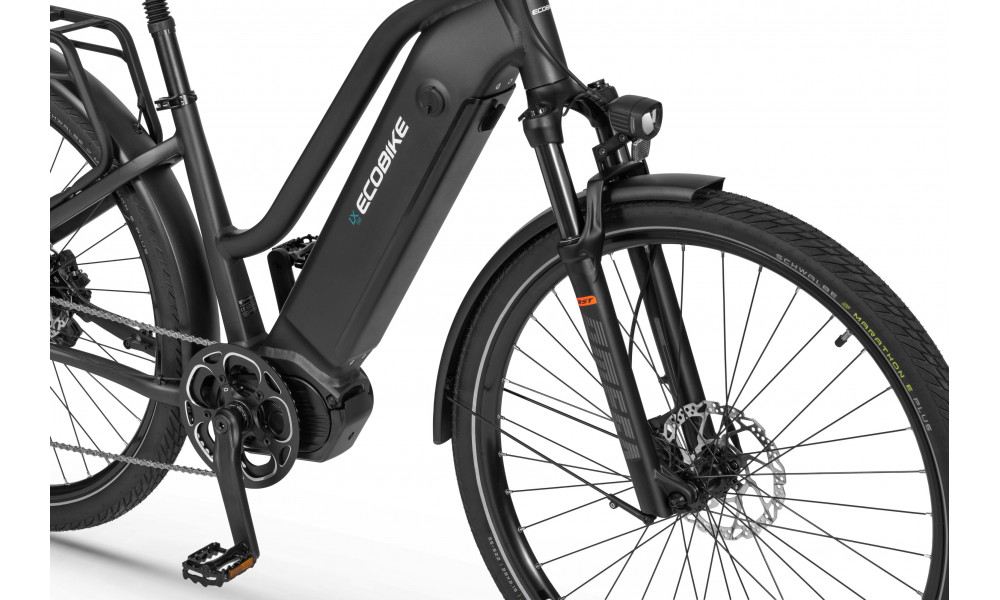

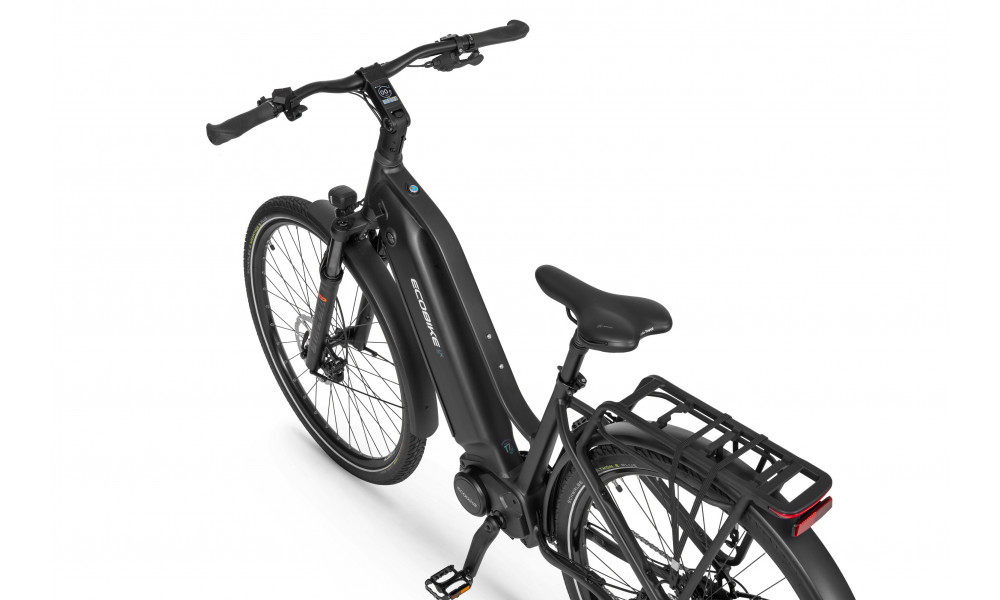

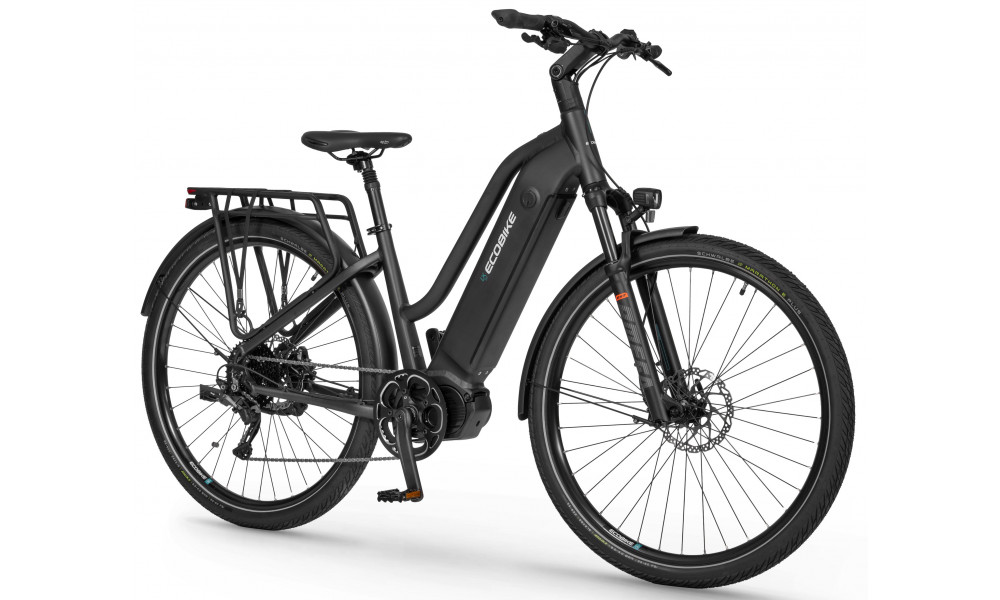

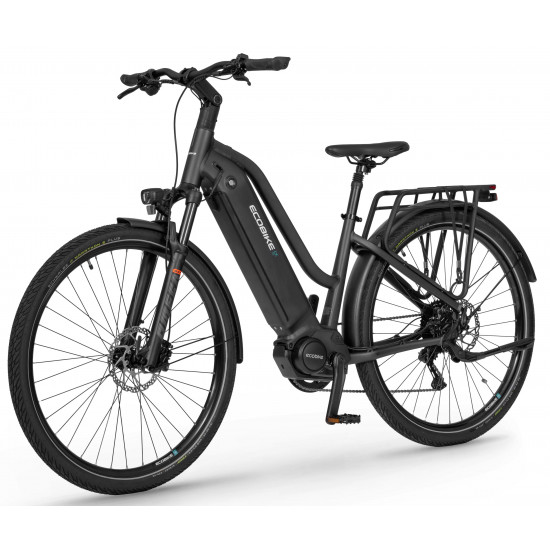

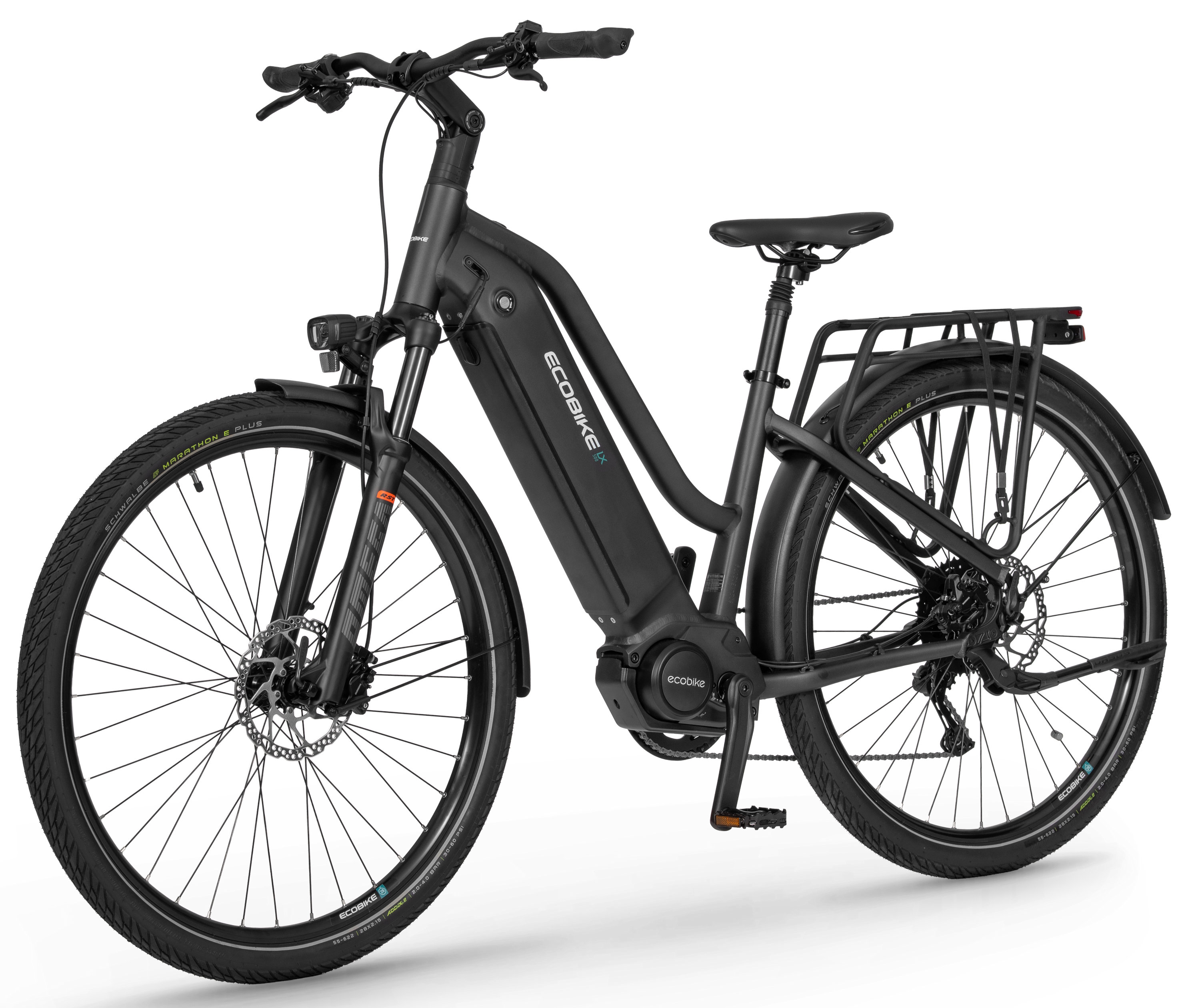

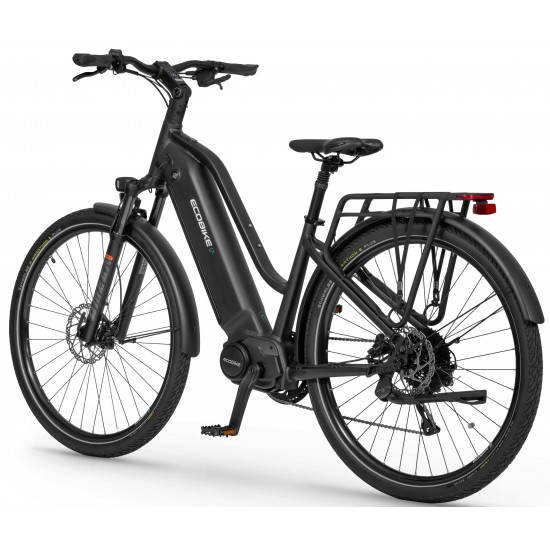

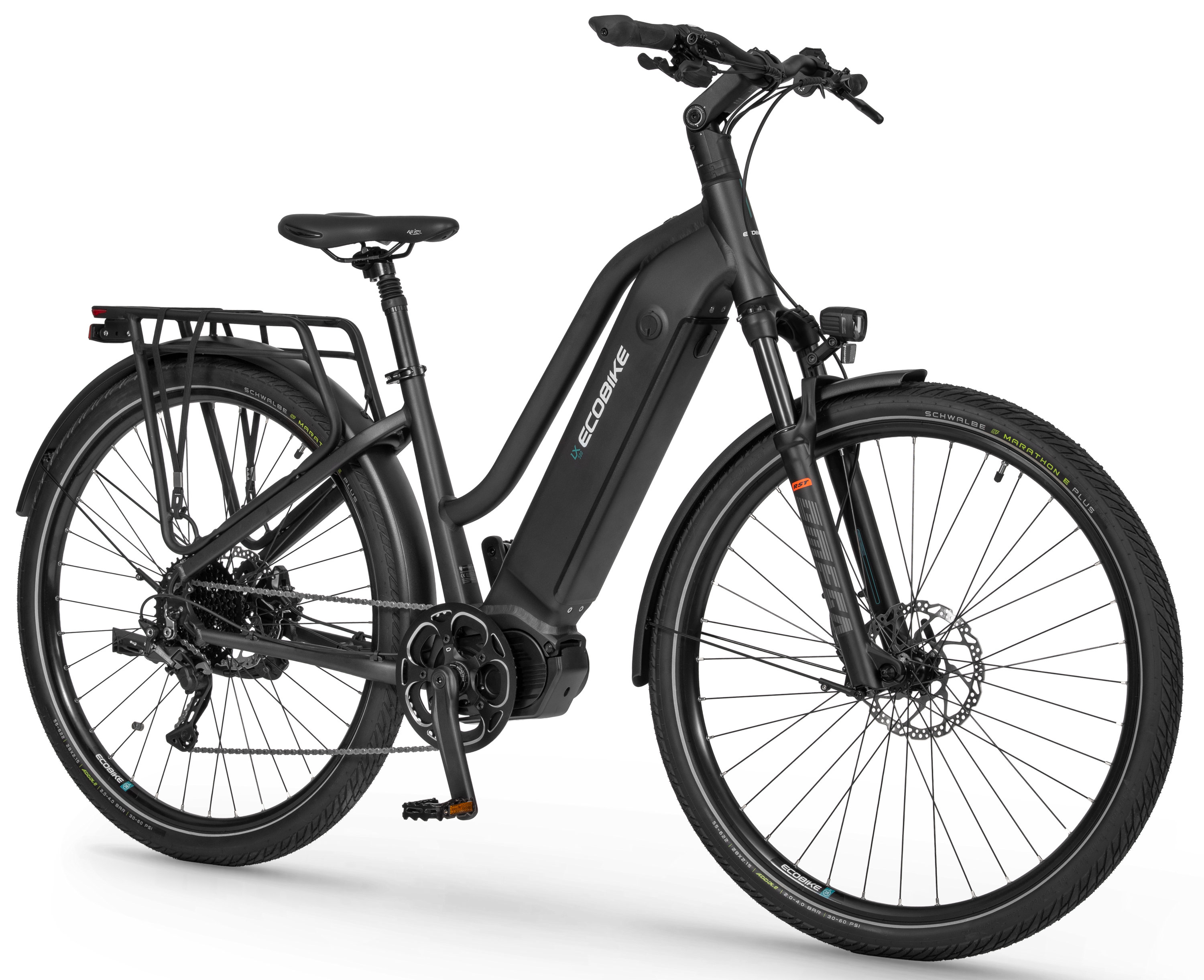

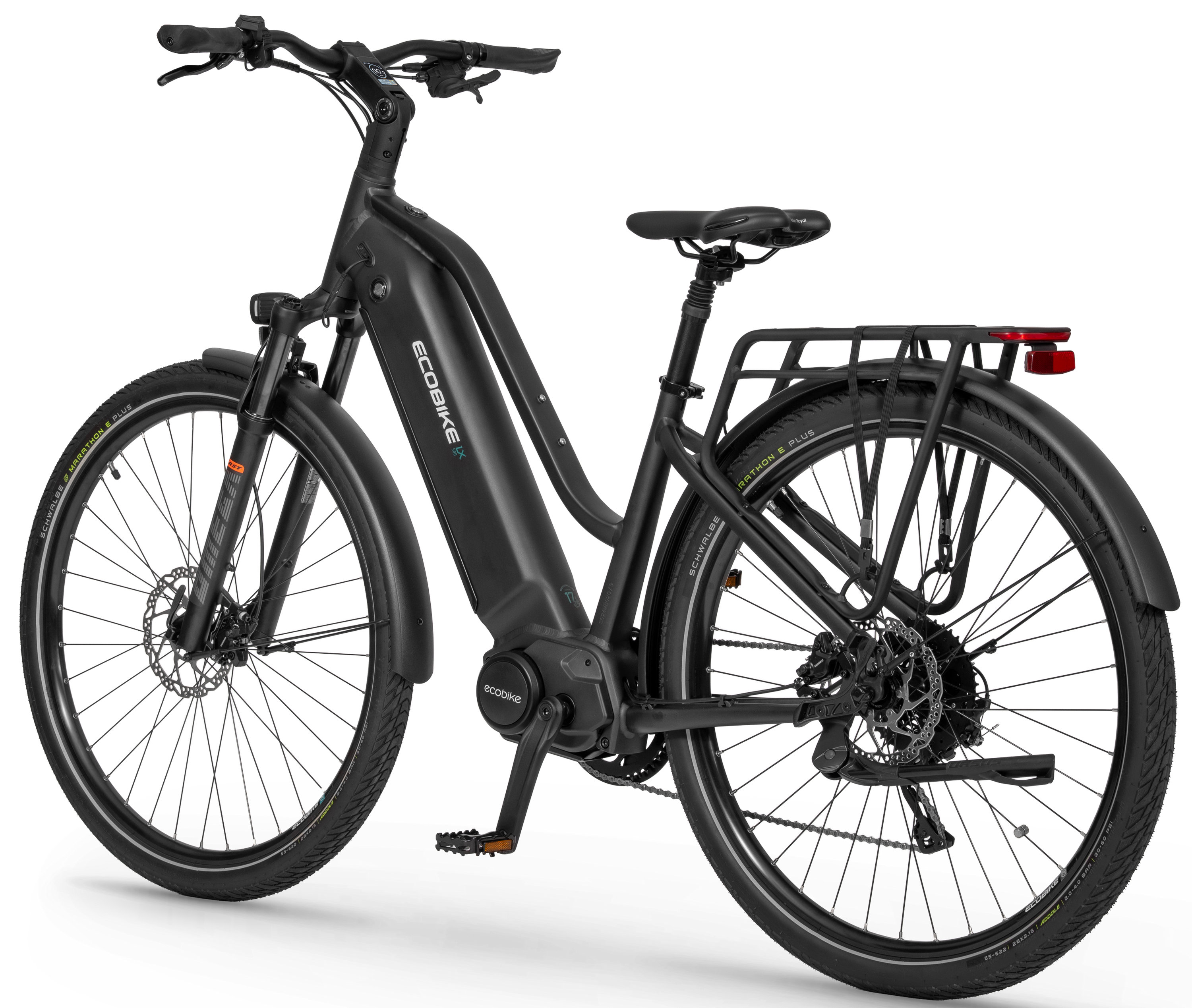

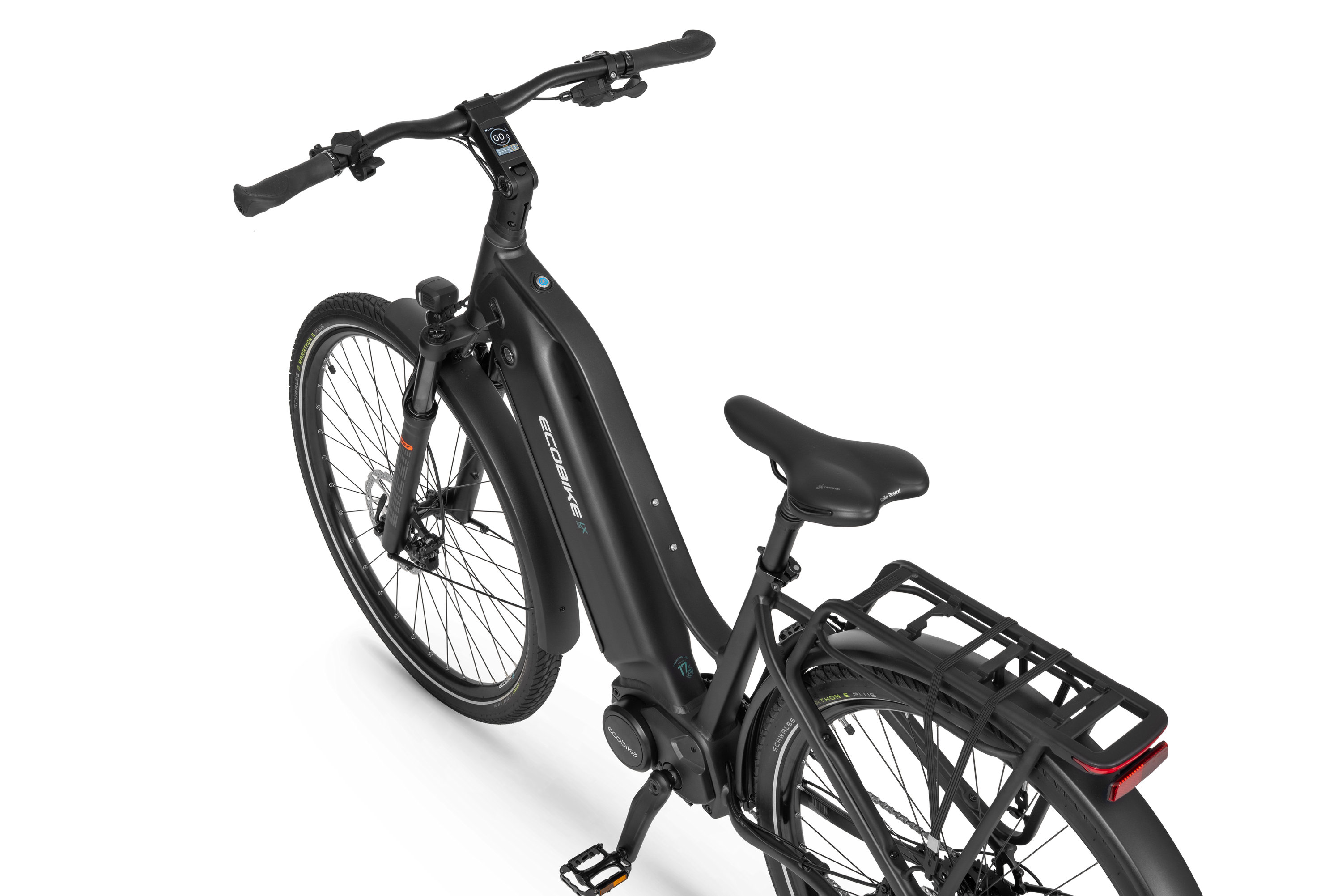

Elektro velosipēds Ecobike LX500 Graphite 960Wh

Produkta kods: ECO260072

Alternatīvi produkti

Rāmja izmērs:

Produkta pieejamība tiks parādīta, kad būs izvēlēts produkta izmērs
Jautāt par produktu
close
Izziņa par preci

Apraksts - Elektro velosipēds Ecobike LX500 Graphite 960Wh
Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent.
Progress is our path. Now you choose your own and follow it with the support of the best technology. Discover new possibilities with the Ecobike LX500 and enjoy the ride with no limits! The unique design of the LX500 brings together the three most important factors for us: comfort, durability and ergonomics. The geometry of the frame allows you to maintain the optimal position for both short trips and longer trips. The reinforced structure ensures safety, and all vibrations and shocks are distributed in such a way that the ride gives as much pleasure as possible. We managed to achieve great balance by placing the motor at the right angle and the battery at the bottom of the frame. Be sure that the LX500 will drive safely and confidently, and thanks to the fully integrated battery into the frame it will amaze and surprise everyone. The electric system hidden in the Ecobike LX500 is an intelligent organism. The Ananda middrive generates a whopping 130 Nm of torque, which allows this machine to climb even the steepest climb. Although the potential is very large, the users decides how they wants to ride, and the intelligent monitoring system of the way of movement will adjust the work of the bike in such a way that it is smooth, lasts as long as possible, and at the same time it is as close to natural riding as possible by bicycle. The unique possibilities could not be achieved without advanced power supply. Ecobike LX500 is supported by 48V batteries equipped with the Smart BMS system, which intelligently manages the battery operation, allowing it to keep it in good condition for years. There are two powerful variants to choose from: 14 Ah with 696 Wh and 17.5 Ah with 840 Wh. We have made sure that there was enough energy. You will surely like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle's lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions and configuration options for electric drive system. At Ecobike, technological progress meets passion for bicycles. The LX500 is a proud example of this - in addition to proven technology, it could not lack reliable components. Bike traction like this one is essential. We have taken care of it using an RST OMEGA TNL suspension fork and Schwalbe Big Ben Plus 28x2.15 tires. The highest level of safety is provided by SRAM Level hydraulic disc brakes. The derailleur in an electric bike with a middrive must be very durable. We used the SRAM GX model in the LX500. So that the LX500 is ready for anything out of the box, we've equipped it with complete lighting, fenders, a rack and the comfortable Selle Royal saddle. The Ecobike LX500 has been created in order to allow others to choose their own path.

Product technical specifications

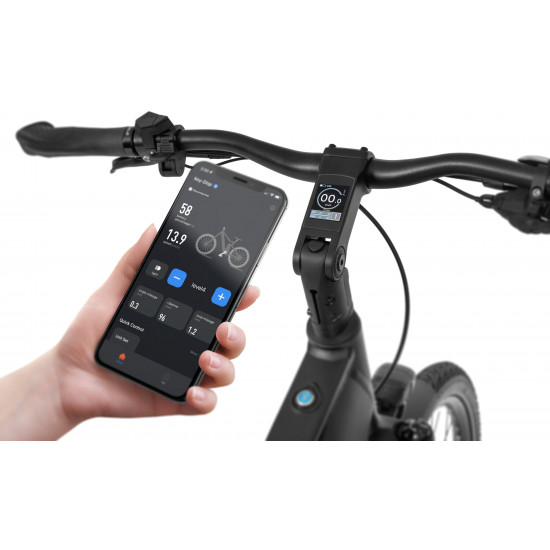

    DISPLAY:

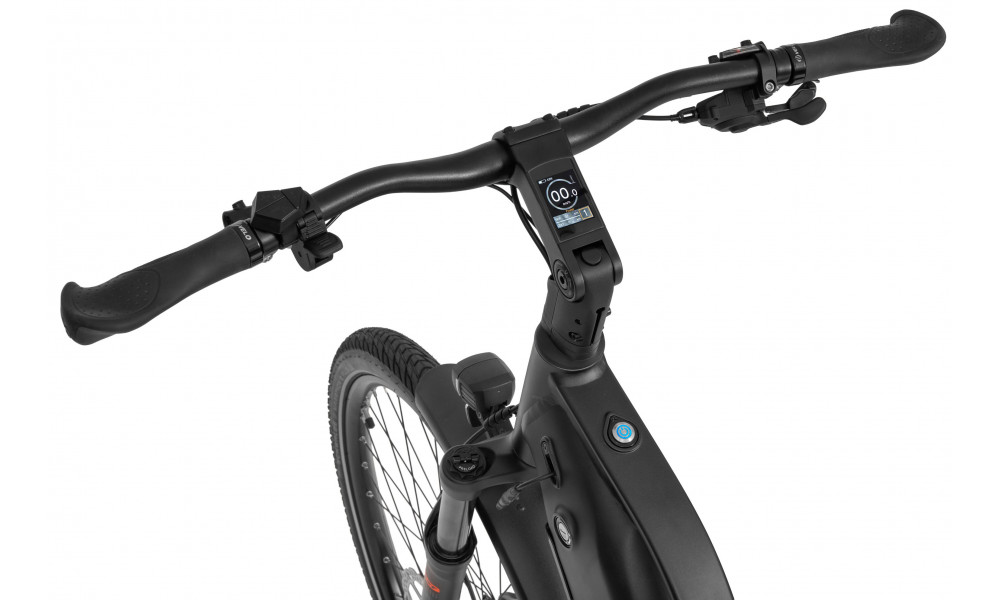

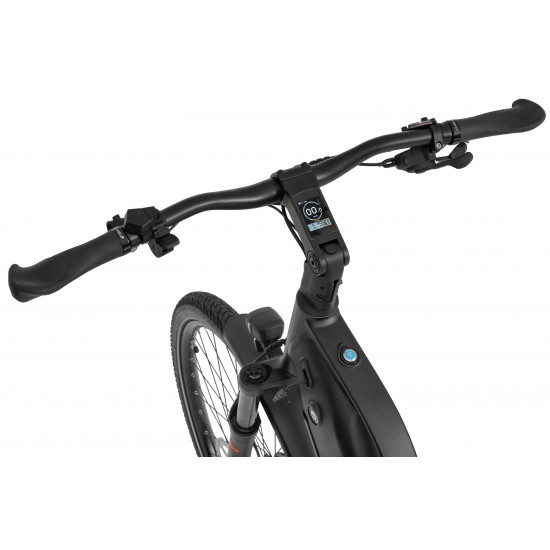

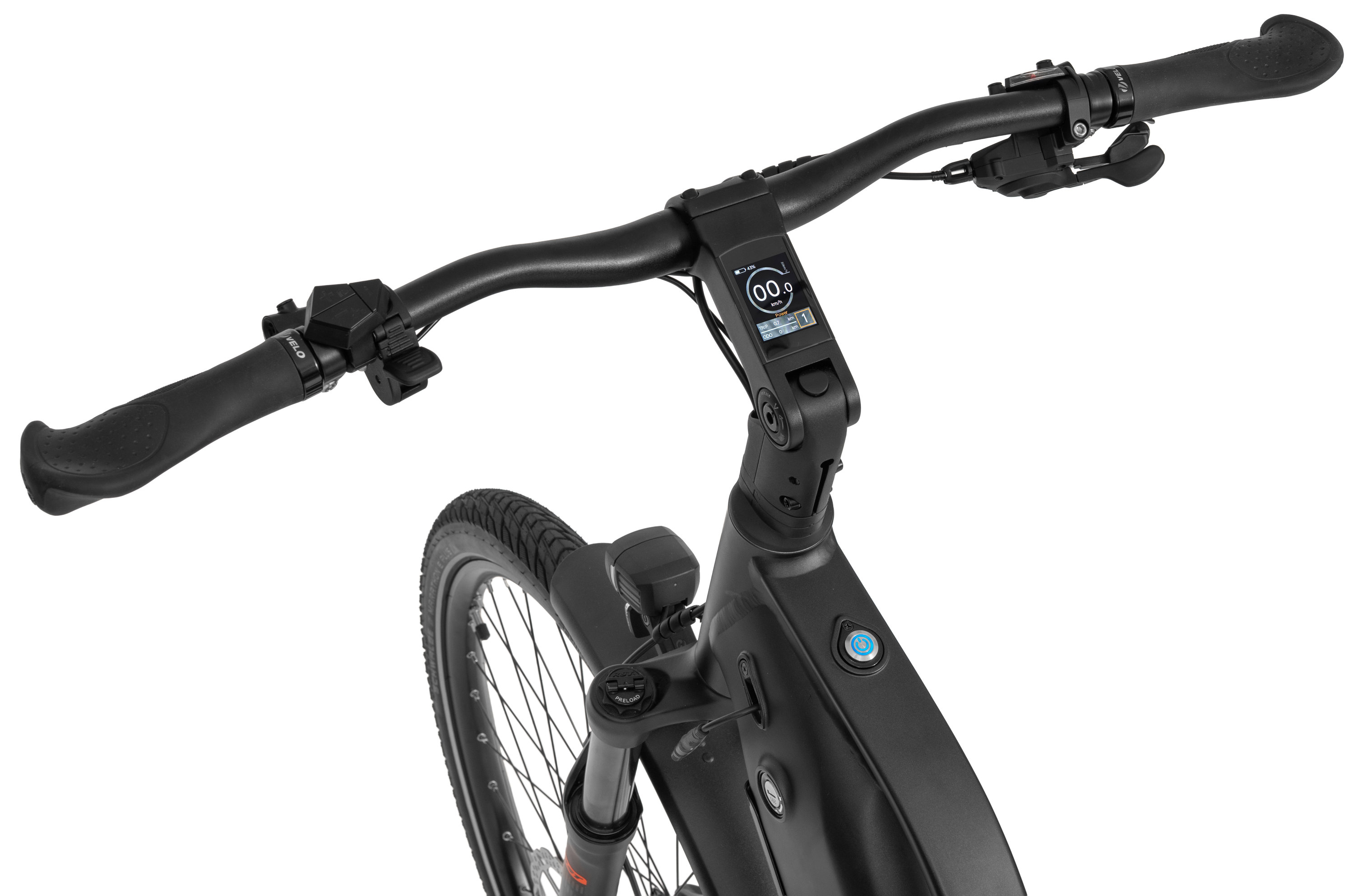

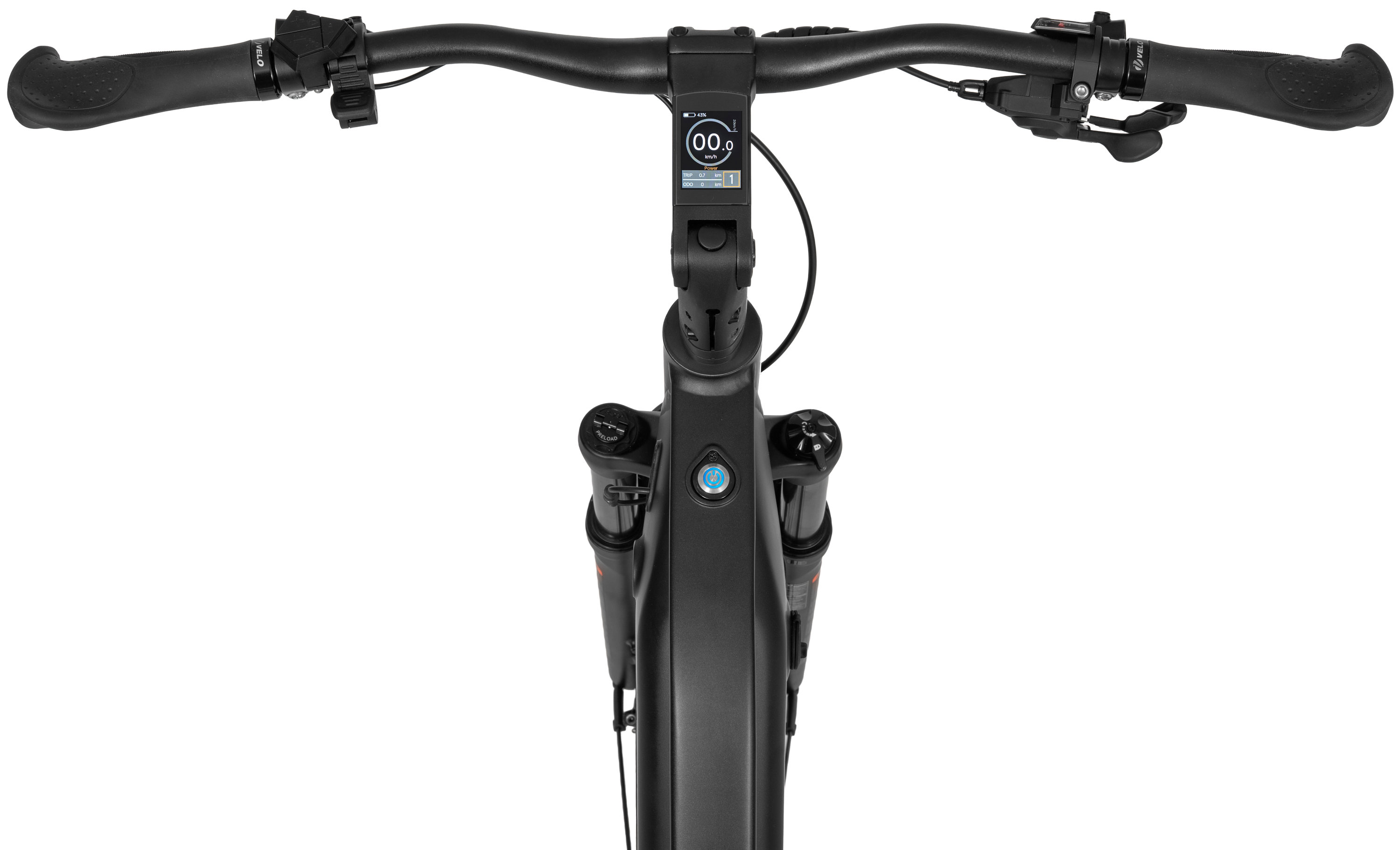

  • Display model: KD-786 - stem display inside
  • Display type: Color LCD

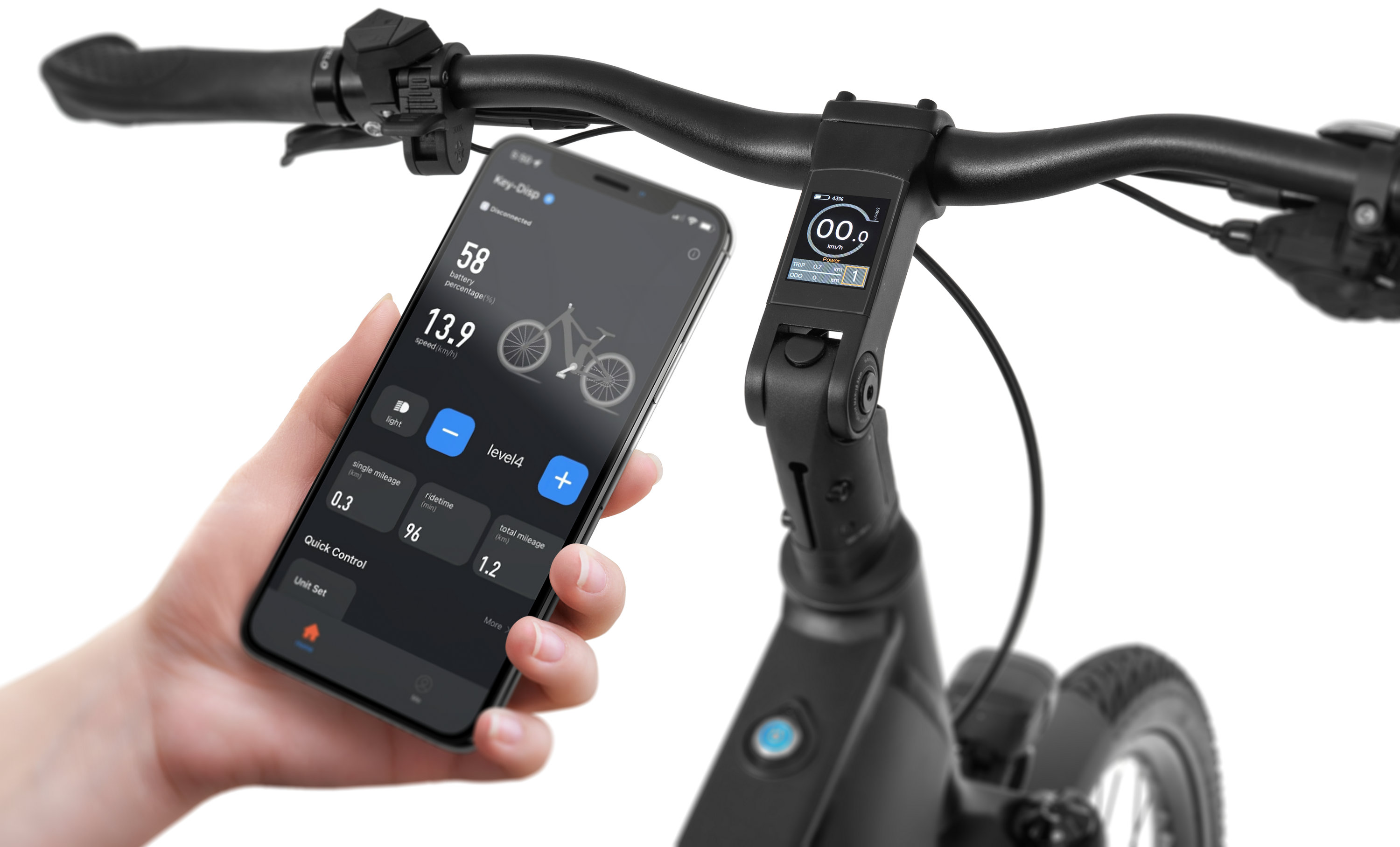

  • Compatible application: Ananda Ride

    DISTANCE:

  • Capacity and range:
  • 960 Wh: MAX 175 km
  • ENGINE:

  • Voltage: 48 V

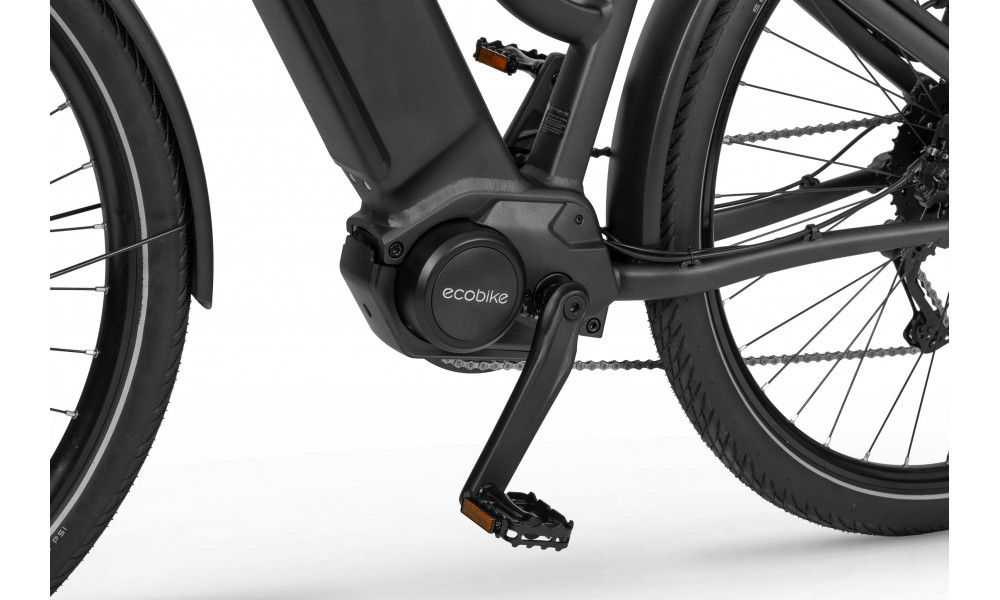

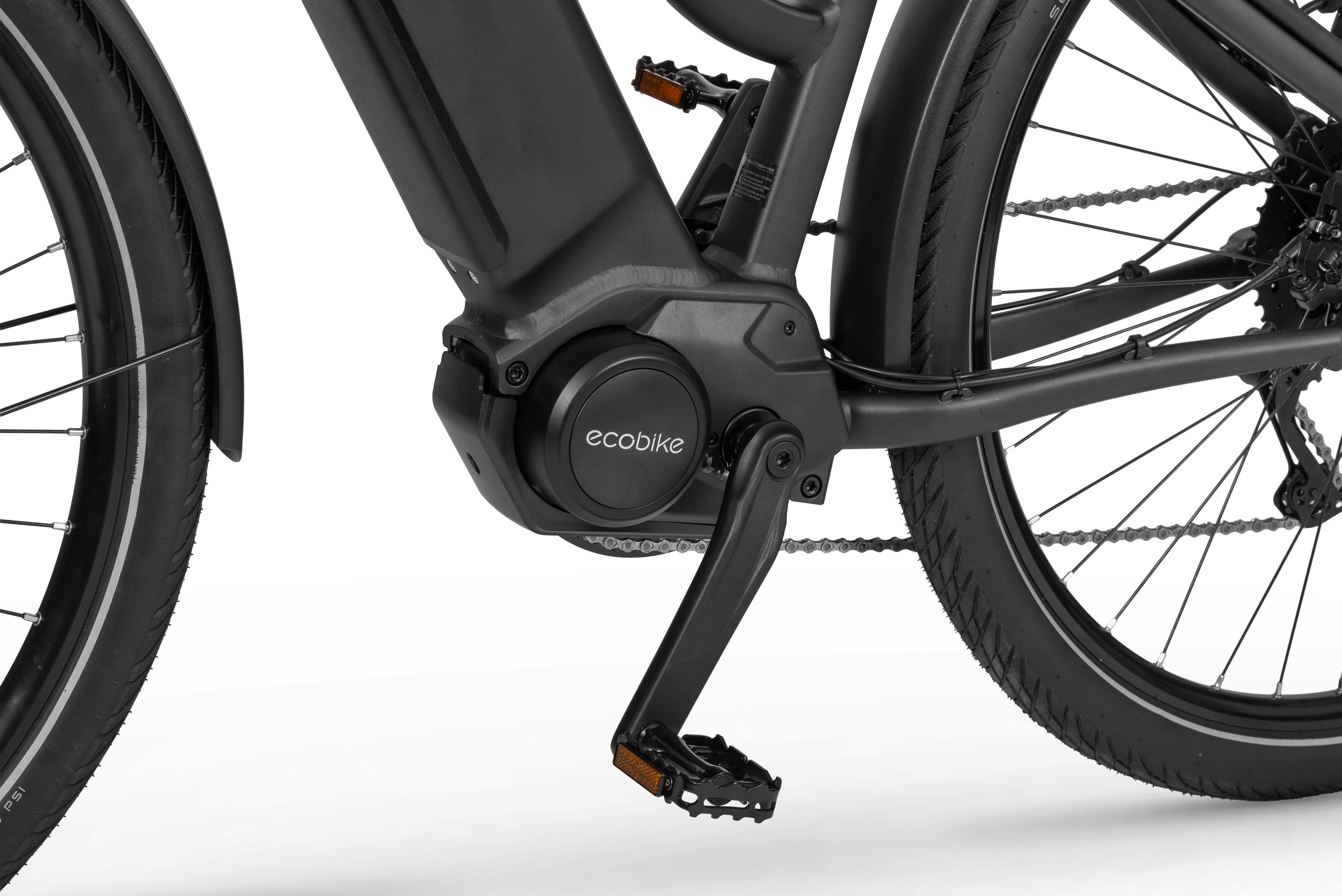

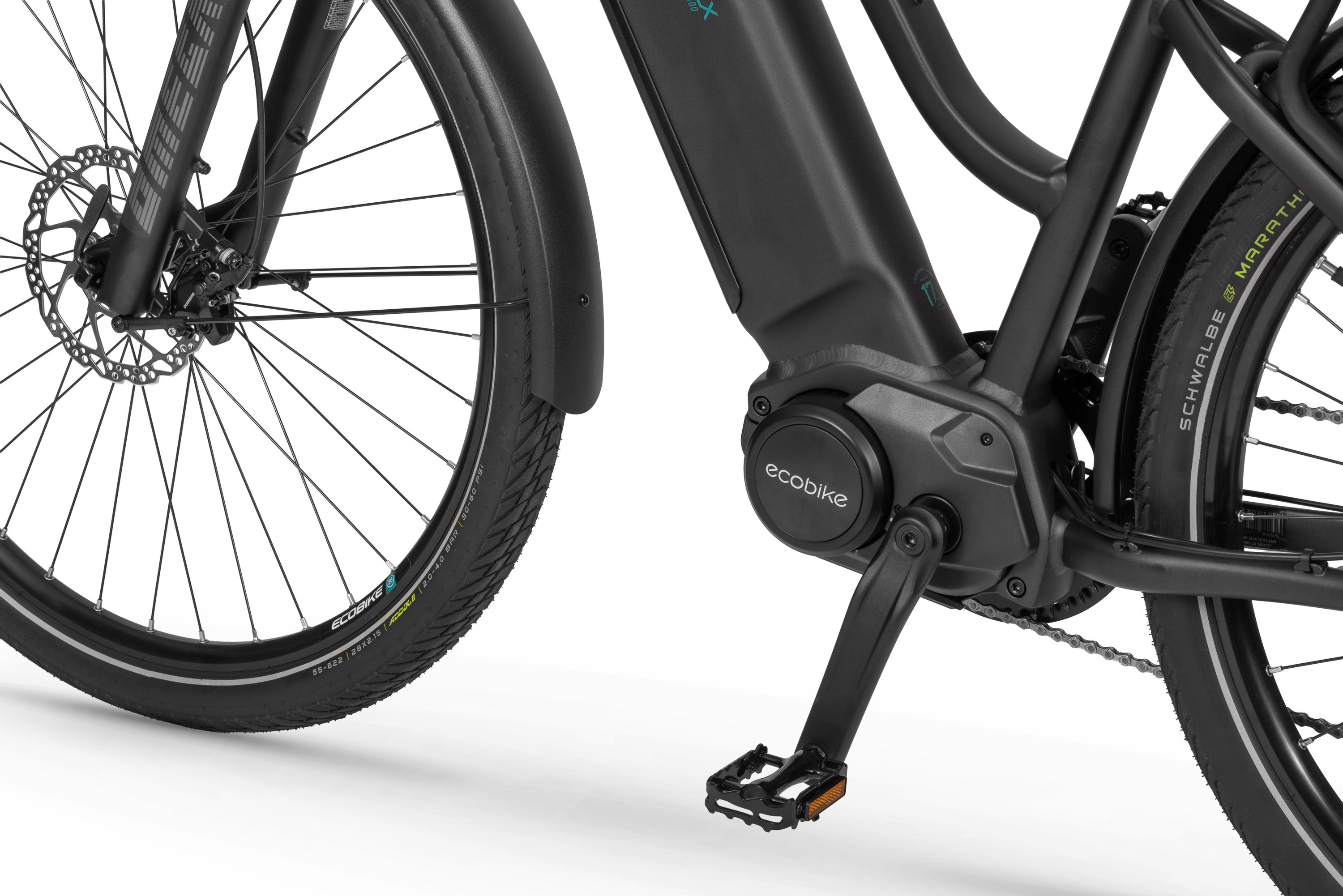

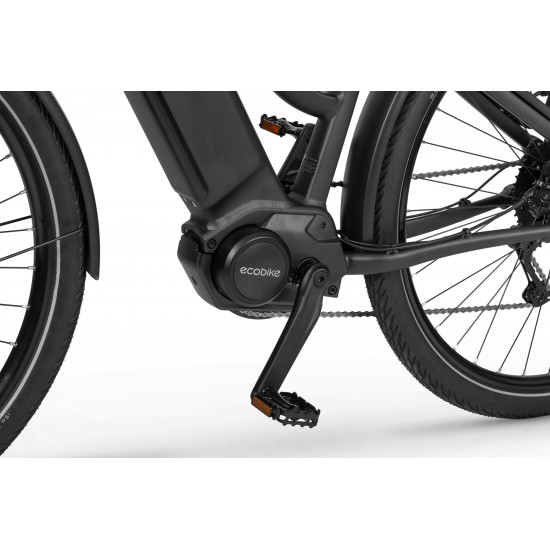

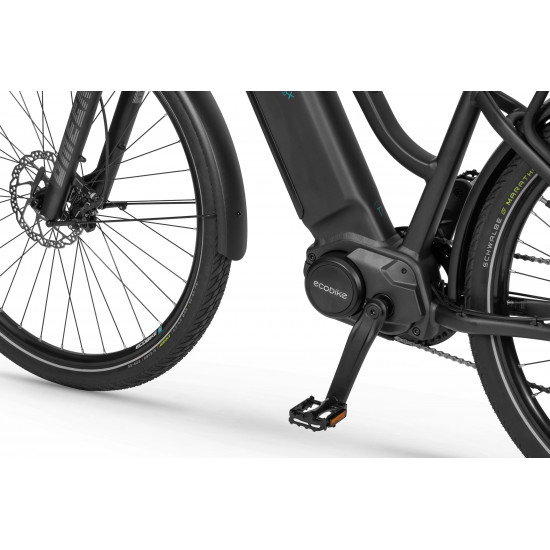

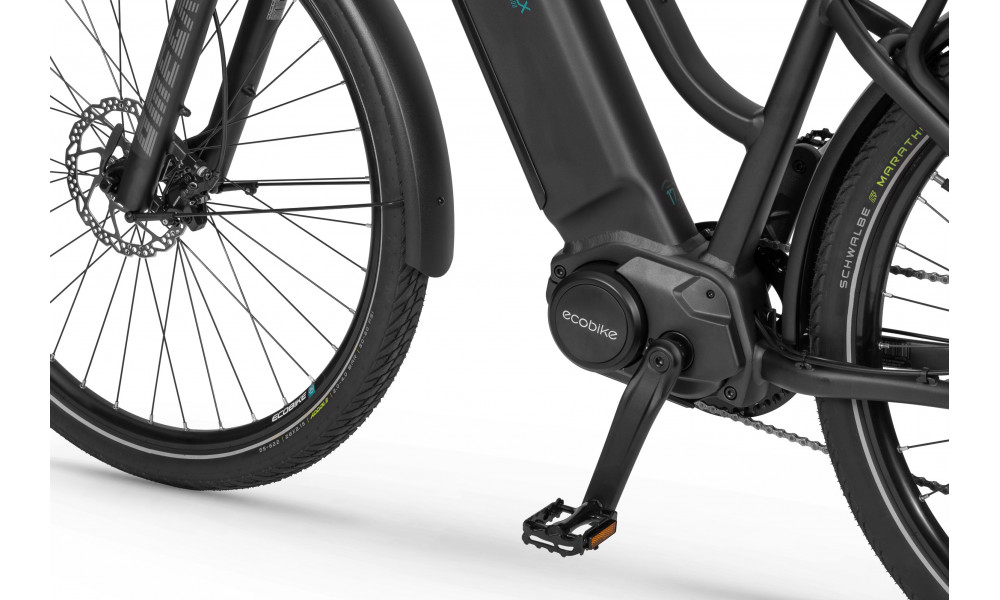

  • Mount: Central (mid-drive)
  • Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
  • Torque: 130 Nm
  • Motor's brand: ANANDA
  • Power: 250 W

    BATTERY:

  • Lifespan: 700 charges
  • Type: Li-ion
  • Voltage: 48 V
  • Charger: 100-240V
  • Cells brand: LG
  • Smart BMS (Battery Managment System)
  • Battery can be removed for charging
  • CHARGING TIME: 7-8 hours

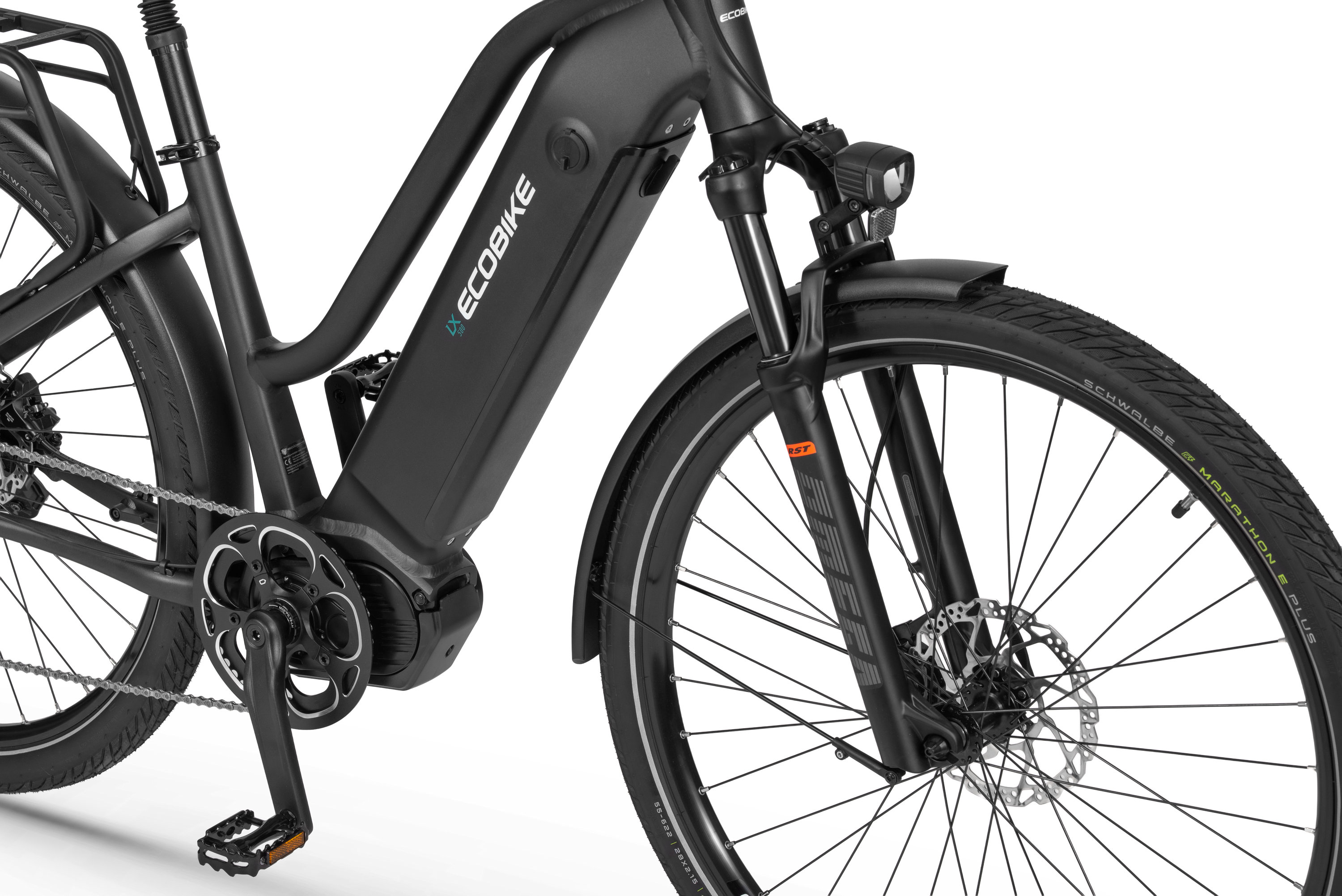

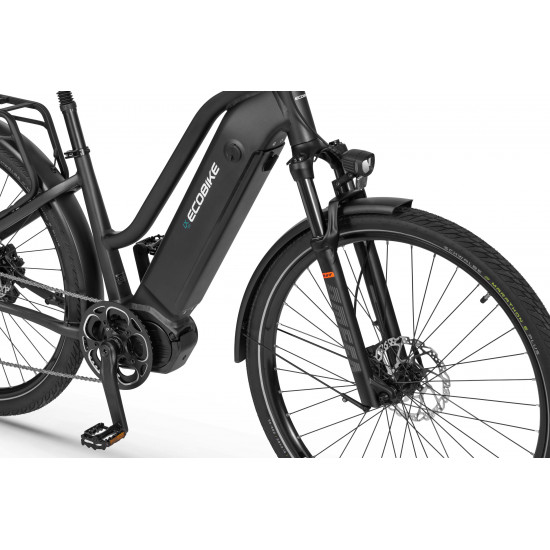

  • FRAME: Hydroformed aluminium
  • FRAME SIZE: 17"
  • FORK: RST OMEGA TNL, 29 travel 100 mm
  • BRAKES: Shimano MT400 hydraulic disc
  • CHAIN: KMC eGlide Silver 126L
  • CHAINWHEEL: 1-speed, 46T

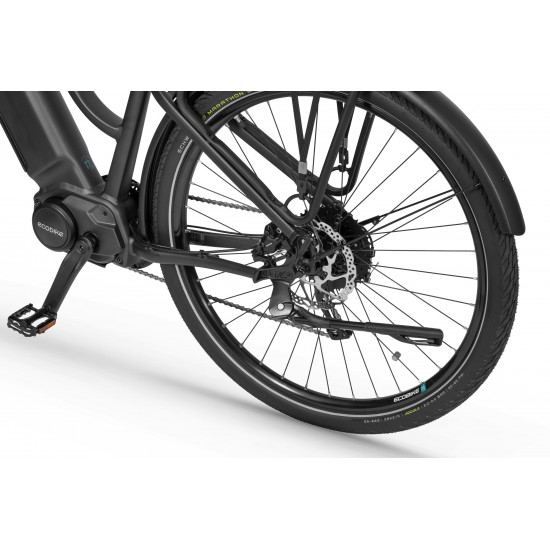

  • REAR DERAILLEUR: Shimano Deore, RD-5130, 10-speed
  • FREEWHEEL: Shimano Cues, 11-43T, 10-speed

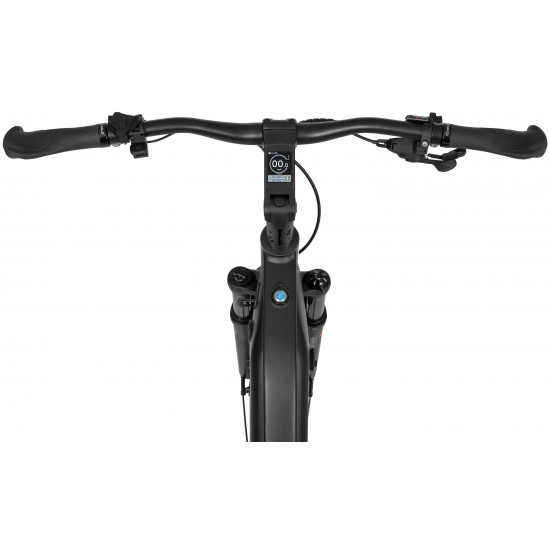

  • HANDLEBAR: Promax 700 mm 31.8
  • STEM: TDS-D658A-8FOV, 31.8 degrees / E: 105 mm, with display inside

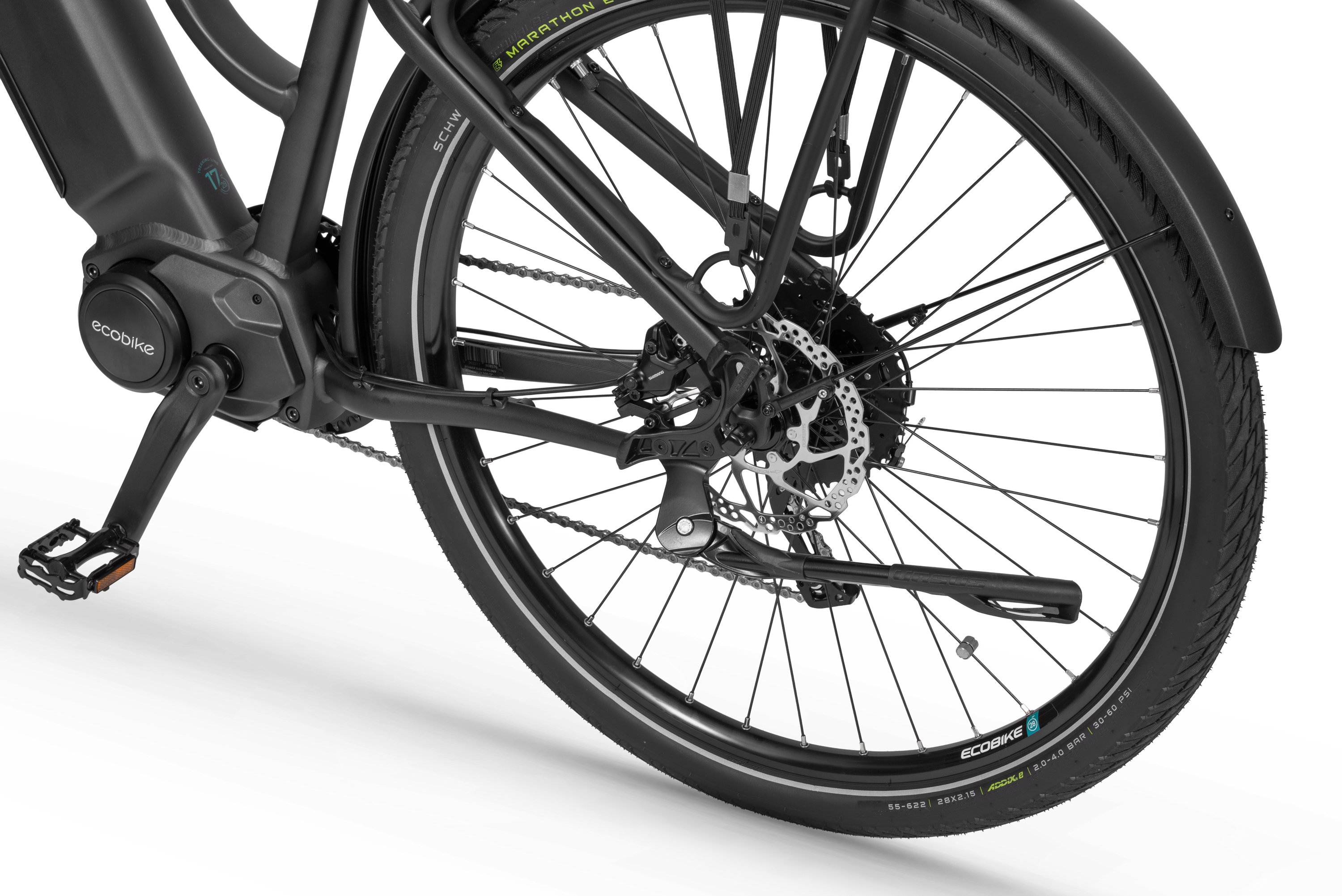

  • HUBS: Front hub: Shimano HB-TX505, QR, 36H, Center Lock / Rear Hub: Shimano FH-TX505-8, QR, 36H, Center lock
  • PEDALS: VP
  • RIMS: 28", reinforced
  • SADDLE: Selle Royal ARIEL
  • SEAT POST: Promax 30.9" / 400 mm
  • SHIFTERS: Shimano Cues, 10-speed
  • SPOKES: Sapim
  • TYRES: 28" x 2.15 Schwalbe Marathon E-Plus
  • WEIGHT: 28.8 kg
  • SPEEDS: 10
  • MUDGUARDS: For front and rear wheel, with u-stays
  • GRIPS: VELO VLG-1189D3
  • KICKSTAND: Rear, adjustable length, aluminium
  • CARRIER: Aluminium, max.: 25kg, with carrier straps
  • LIGHTS: Rear Light: Spanninga GLOW XE / Front Light: Herrmans MR5
  • GEOMETRY:

  • Effective top tube length: 595 mm
  • Head tube lenght: 160 mm
  • Frame size: 432 mm
  • Wheel base: 1147.7 mm
  • Seat tube angle: 72.5
  • Headset angle: 69
  • Maximum load: 125 kg
  • Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
  • Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
  • Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
  • Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
  • Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
  • Lifespan - stated number can be lower if stored and used improperly
  • Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
  • Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
Produkta detaļas
Preces nosaukums
Elektro velosipēds Ecobike LX500 Graphite 960Wh
Produkta kods
ECO260072
Ražotājs
Ecobike
Svītrkods
Tips
Sievietes
Rāmja materiāls
Alumīnijs
Priekšējais amortizators
Ir
Aizmugurējais amortizators
Nav
Disku bremzes
Ir
Gads
2026
Krāsa
BLACK
Vairāk
Mazāk
Lepakojuma iespējas
Piegāde
Ražotāja iepakojums
Velosipēds braukšanai būs jāsagatavo pašam - Bezmaksas / Piegāde 1 - 3 darba dienu laikā

Velosipēds tiek piegādāts oriģinālajā ražotāja iepakojumā, kas aizsargā sastāvdaļas uzglabāšanas un nosūtīšanas laikā (parasti ar noņemtu priekšējo riteni, stūri un sēdekli). Pērkot velosipēdu šādā iepakojumā, pircējam vai viņa izvēlētajam velosipēda mehāniķim pirms lietošanas velosipēds ir jāsamontē, jāpievelk skrūves un jānoregulē.

Piegāde
XL iepakojums
Velosipēds tiek nosūtīts ar kurjeriem – samontēts un noregulēts + 24,90 € / Lepakošanas laiks 3 - 5 dienas

Pirms nosūtīšanas velosipēds tiek sagatavots braukšanai – tiek salikts, noregulēts un skrūves ir pievilktas. Tas tiek piegādāts iepakots īpašā kartona kastē. Pēc velosipēda saņemšanas atliek tikai pareizi salikt pedāļus, pievilkt tos, noregulēt stūri un sēdekli pareizā stāvoklī un izbaudīt braucienu. Bērnu velosipēdiem var būt jāpieskrūvē arī papildu riteņi un stumjamais rokturis, kas ir iekļauti komplektā. Pakalpojuma cenā nav iekļauta papildu iegādāto piederumu un aksesuāru montāža.
