Apraksts - Velosipēdu riteņu komplekts Fulcrum Speed 40 DB 2WF C19 AFS front HH12 - rear HH12/142 USB
Since 2004, Fulcrum has developed wheels for bikes with a sole, constant objective in mind: to deliver the best performance that modern technology can offer. A large part of this task is the responsibility of the R&D division engineering team in Italy. However, if you want to create ever faster wheels, you cannot focus solely on test bench results, you also need to gain feedback from top riders and cycling fans worldwide. And this is what we do: we race our bikes during lunch breaks or after work, we test our wheels by pushing them to the max, fitting them to the bikes of world champions, listening to suggestions and comments from the world of racing and from our clients.

SPEED is synonymous with competition, and represents the ultimate in performance, above all when the stopwatch is the only means used to judge results on a racing bike. It the name of a product created for World Tour professionals, who use the tubular tyre version, and for all those who use these wheels for racing. With the above as a premise, what features should the 40 mm-high, non-tubular SPEED wheel - which is ideal in most situations - have? That's simple: the best of everything. And thus, the SPEED 40 DB, 2-Way Fit (tubeless) + disc brake wheel is born. SPEED 40 DB is a set of wheels for use with disc brakes that will simply leave you speechless, featuring a cutting-edge rim with a new shape, designed according to innovative technical concepts. At 26.5 mm, the wheel is wider, with an aerodynamic shape which includes a pronounced 8 mm profile and a "twill" weave carbon fibre texture, optimising the elastic responsiveness of the rim. The final aerodynamic profile is the fruit of a lengthy finishing process: from simulations to prototype testing, in order to select the best design whilst taking the side wind and the turbulence created by the disc into account, followed by a long analysis to choose the best materials to be used on the final product. Need a few more hints to get a real feel for the spirit of this wheel? Here they are: the SPEED 40 DB boasts a 2-Way Fit construction - and as such is tubeless by conception - with a 19 mm wide channel, and a USB ceramic cone & cup bearing system. And, of course, the oversize flanges on the hubs are designed to take full advantage of all the benefits offered by the disc brake. Ultimately, the SPEED 40 DB is the new point of reference for riders who have chosen to a disc brake, and who are looking for the very best wheels out there, with a true racing pedigree and a perfect mid-profile on the majority of routes.

  • Tyre type: 2-Way fit (for clincher and tubeless)
  • Tyre size: 28"
  • Discipline: Road / Triathlon
  • ASTM category: 2
  • Weight (Front+Rear): 1470 g
  • Rim material: Carbon
  • Rim material details: Full carbon, "Twill" - carbon fiber finishing
  • Profile height: Medium
  • Rim height: 40 mm
  • Rim width: 26,5 mm
  • Inner rim width (channel): 19 mm
  • Tyre width: From 23 mm to 50 mm
  • Braking system: Disc brake
  • Braking surface/brakes options: AFS
  • Front axle compatibility: HH12-100
  • Rear axle compatibility: HH12-142
  • Front wheel spokes: 21, Two-to-one (14 left - 7 right)
  • Rear wheel spokes: 21, Two-to-one (7 left - 14 right)
  • Spokes material: Stainless steel, double butted
  • Spokes profile: Rounded, straight pull
  • Nipples: Aluminum
  • Front hub: Carbon, Aluminum oversize flange
  • Rear hub: Aluminum, Aluminum oversize flange
  • Bearings: USB ceramic bearings. Adjustable Cup & Cones bearing system
  • Others: Plasma treated HG freewheel. Aluminum Axle
  • Weight limit (front+rear): 109 kg (Cyclist)
  • Freehub (OPTIONAL): SHIMANO HG11 (8/9/10/11-speed) OR Campagnolo N3W OR SRAM XDR


2-WAY FIT (ROAD): We have developed our 2-Way Fit technology to ensure the perfect compatibility of our tubeless rims with normal clincher types and tubes. 2-Way Fitroad bike wheels are perfectly multipurpose for tackling every situation. Thanks to a special impression in the valve area, the tubes are fitted with the maximum precision while keeping the tube perfectly stable inside the tyre. Housing the valve for tubeless tyres is also risk-free, with the unquestionable advantage that there are never any air infiltrations caused by non-ideal positioning when fitting.

RDB RIM DYNAMIC BALANCE: The concept is simple and elegant: balance the weight of the gasket, with an item of similar weight placed on the exact opposite side. For top models, this is obtained by a special operation on the section of the rim opposite the rim joint. For entry-level models, Dynamic Balance is obtained by using two oversized spokes in the section opposite the joint. The result is a wheel with perfectly balanced rotational dynamics.

2:1 TWO-TO-ONE: When you push on the pedals, the rotational force on the sprocket induces a slackening of the freewheel spokes with a consequent loss of rim tension. This results in undesirable flex of the whole wheel and an unavoidable loss of energy. Fulcrum has solved this classic cycling problem with its 2:1 Two-to-One Spoke Ratio patent, by doubling the spokes in the critical zones.

MOMAG: A magnet and lots of ingenuity. This was what led to the patent for the well-tested “Mounting Magnet” system, or MoMag.

TRACEABILITY: A guarantee of quality. The keyword for our products is: traceable. If you find a little label attached to any Fulcrum product, do not remove it. It will provide you a guarantee in case of an ascertained defectiveness of a production batch, and so the component needed or wheel will be traceable. All this because, devoted to its mission, Fulcrum demands the absolute perfection and safety for its customers.

ANTI-ROTATION SYSTEM: This new system raises the concept of spoking to a new level of performance for road bike and triathlon wheels ( and mtb too) The Fulcrum engineers have redesigned the spokes and the hub housings to create a solid and unmoveable whole. The result is that the spokes a) will never lose their initial tension, thus keeping the wheel perfectly reactive and centred b) will remain in the position that have been studied in the wind tunnel tests to ensure the best aerodynamic penetration possible.

AFS AXLE SYSTEM: The Axial Fixing System is the solution developed by Fulcrum to fix the disc brake to the hub. The constraint granted by the butt area of the release mechanism, greater than in familiar standard ones, makes it possible to obtain greater structural rigidity and therefore more precise and powerful braking.

WIDE RIM TECH: Fulcrum’s R&D department, following requests from the competition circuit, has worked to create rims that are wider than before, about 4 mm or more than previously. This technical choice provides an ideal basis for 25/28mm tyres, the sizes currently popular. This ensures stability, excellent handling and superior comfort.

CUP & CONE: The cup-and-cone bearing differs from the classic cartridge bearing because it works in perfect alignment with the forces involved, weight and thrust from the frame, as the bearings run in a race positioned directly opposing these forces. The adjusting ring lets you pre-load the bearing, so you can eliminate side-to-side play and have optimum adjustment once the wheel is mounted on the frame.

RIM FULL CARBON TECHNOLOGY: Full carbon Fulcrum rims are built using combinations, developed in the laboratory, of different types of fibre, including UD and the famous 90-degree 3K of models at the top of our range. To build them we developed a special HTG (high transition grade) resin, whose glass transition point is at a higher temperature than any other fibre used in the bicycle industry. This gives incomparable performance when braking.

PLASMA FREEHUB:The Plasma treatment makes the aluminium especially hard and resistant to surface abrasion and wear. This has allowed thickness of materials to be reduced to a minimum, achieving advantages of lighter weight, while maintaining lifespan and reliability.

OVERSIZE FLANGE: The Oversize Flange was developed from the need to create a system to transmit every watt to the ground without dispersion, stiffening the wheel system where necessary, without having to add spokes or superstructures that increase weight. The oversize flange uses physics to solve the problem. It increases dishing and enables spokes to be shortened. Doubling the spokes creates a balanced system that is excellent at transmitting torque.

DISC SPECIFIC RIM: compatible only with disc brakes

USB CERAMIC ULTRA SMOOTH BEARINGS: Fulcrum has a long-standing reputation for the extremely high performance of its hubs in terms of smoothness and reliability. In fact, all the projects are entirely developed in our R&D department and we have put obsessive care into taking care of every detail. The hubs with USB ceramic bearings (Ultra Smooth Bearings) further enhance the triathlon and road bike wheels’ smoothness and reduce weight and the need for maintenance.

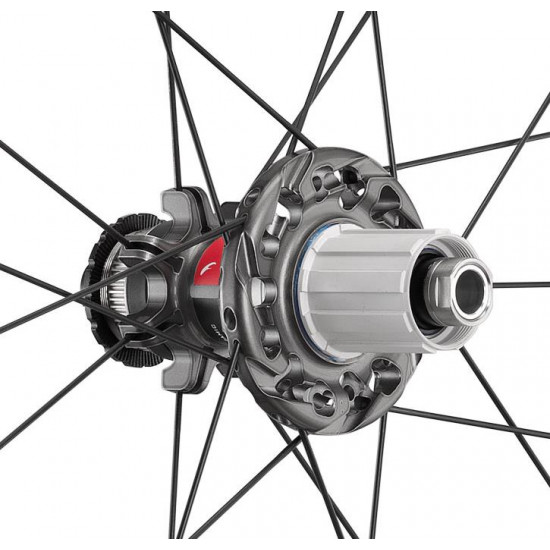

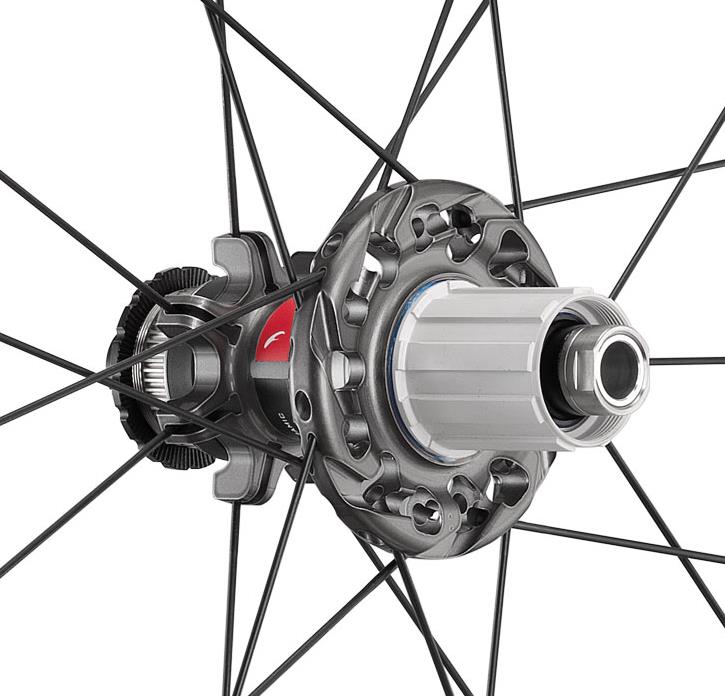

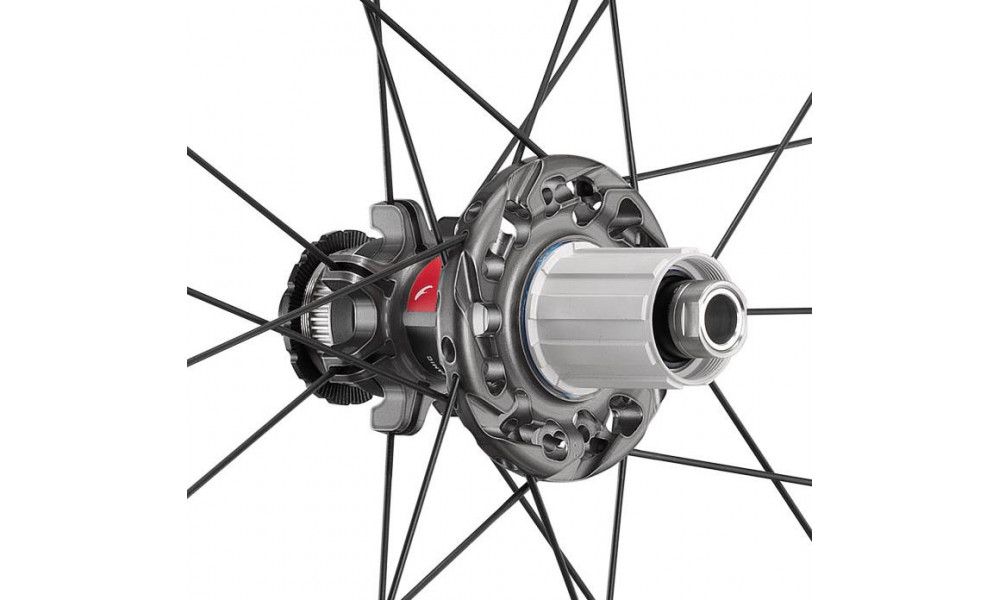

MONOBLOCK HUB FOR DISC: The rear hub of a top-quality disc brake wheel is a technical problem to be solved. Fulcrum’s R&D department found itself facing a fundamental choice: on which side to put the oversize flange of the Two-to-one system? Disc or sprocket side? Without question - must stay on the sprocket side. To combat the loss of braking power from flex and torque of the connector between the two sides of the hub, a special one-piece system has been devised with internal stiffening ribs.

CARBON HUBS: In line with their aim to save every possible gram of weight and to choose the most advanced technological solutions, the R&D department has developed a seamless carbon hub. The fibre selected is woven at 90 degrees, for enhanced balance of torque when pedalling.

DRSC - DIRECTIONAL RIM-SPOKE COUPLING: Exclusive rim/spoke coupling system. It allows the rim, spokes, nipples and hub to align properly with the same tensioning value in all areas.

UNDRILLED RIM BED: No holes on the bridge connector means that the rim is uniform at every point, free from critical areas subject to stress. The advantages are immediately clear: less weight, longer lasting rims, greater resistance to fatigue, the possibility of giving the spokes more tension and more stiffness which, in terms of performance, means improved responsiveness and acceleration.
